GESR9 service outlet with carpet protection frame in hinged cover
Type GESR9 SR U 7011
|Item no. 7405512
|EAN 4012195104094
Item no. / Type
Floor covering thickness
Colour
Nominal size for device installation units
R9
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with handle clamp for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in duct systems and system floors for indoor use.
Up to 9 installation devices with 50 mm central plate can be inserted.
Technical data
Technical data
| Floor height, min. | 73 mm |
|---|---|
| Floor covering thickness | 5 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Number of installable devices | 12 |
| Installation diameter | 305 |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Number of mounting boxes | 3 |
| Suitable for wet care | no |
| Installation depth | 73 mm |
| External diameter | 324 mm |
| With floor covering recess | yes |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK08 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | R9 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Opening mechanism | Handle |
| Clamping range D, min. | 9 mm |
| Clamping range D, max. | 30 mm |

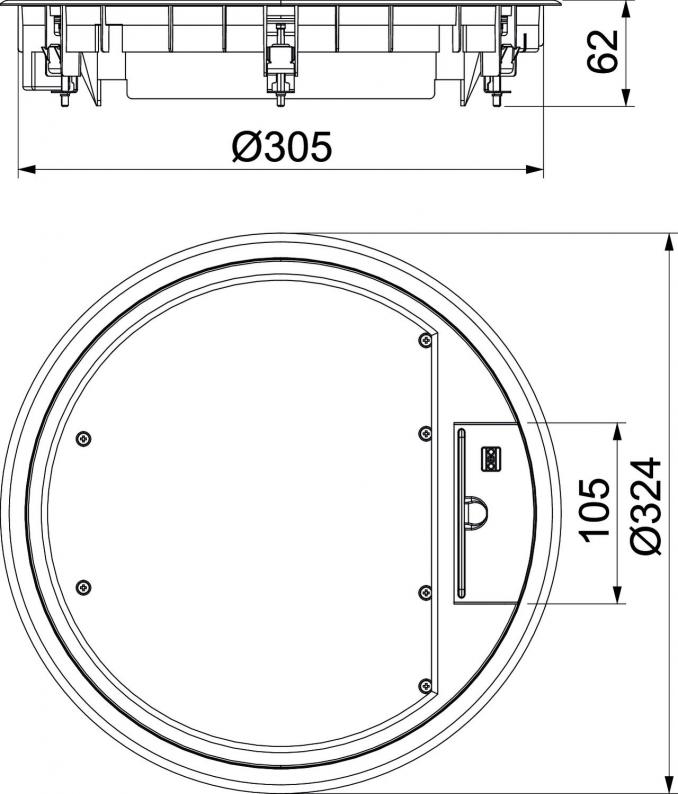

| Dimension | Ø324x62 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
Environmental Data
8,78 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 8,78 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
UT4 45 4
7408727
Smallest selling unit: 1 piece
1piece
piece
Type
UT4 45 4
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Floor covering thickness
Nominal size for device installation units
Colour
Item no.
GESR9 SR U 7011
5
R9
Iron grey; RAL 7011
7405512
GESR9 SR U 9011
5
R9
Graphite black; RAL 9011
7405516
GESR9 SR U 1019
5
R9
Grey-beige; RAL 1019
7405520
Colour
GESR9 SR U 7011
Item no.
7405512
Floor covering thickness
5
Nominal size for device installation units
R9
Colour
Iron grey; RAL 7011
GESR9 SR U 9011
Item no.
7405516
Floor covering thickness
5
Nominal size for device installation units
R9
Colour
Graphite black; RAL 9011
GESR9 SR U 1019
Item no.
7405520
Floor covering thickness
5
Nominal size for device installation units
R9
Colour
Grey-beige; RAL 1019
