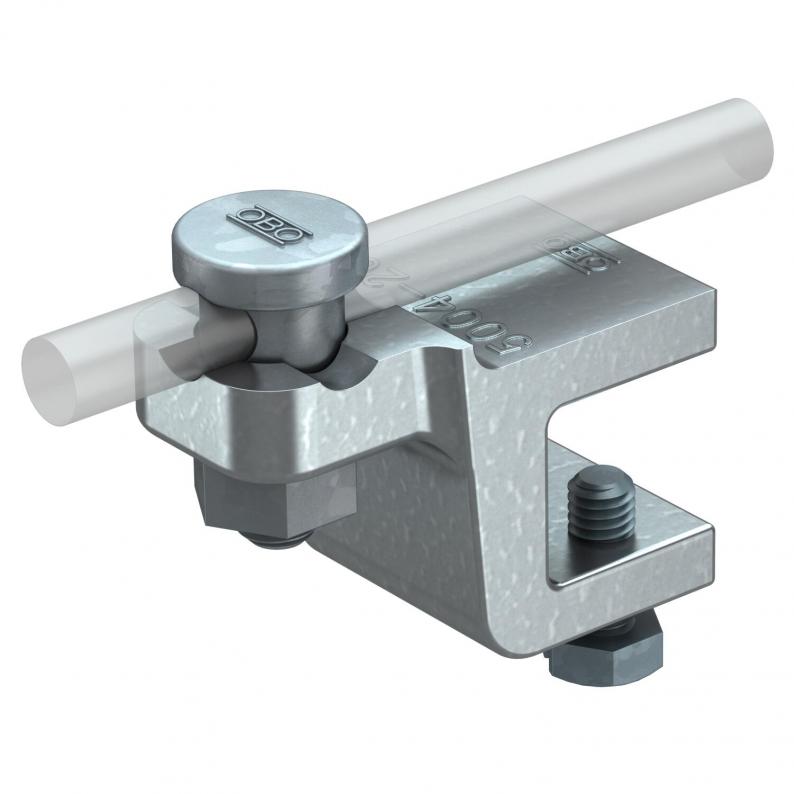

Folding and construction clamp, 10−20 mm
Type 5004 DIN-FT 20 | Item no. 5304504 | EAN 4012195416418
Item no. / Type
Fit
Clamping range, max.
Clamping range, min.
Smallest selling unit: 10 piece
10piece
Description
• Flange thickness to 12 or 10−20 mm
• With pre-mounted fix contact clamping screw 5000
• 2 hexagonal bolts M8 x 20, bolts made of hot galvanised steel
• Terminal block made of malleable iron, hot galvanised
• Mounting of the round conductors either vertical or transverse to structure
• Corresponds to the requirements of DIN VDE 0185-305-3
• With pre-mounted fix contact clamping screw 5000
• 2 hexagonal bolts M8 x 20, bolts made of hot galvanised steel
• Terminal block made of malleable iron, hot galvanised
• Mounting of the round conductors either vertical or transverse to structure
• Corresponds to the requirements of DIN VDE 0185-305-3
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Clamping screw |
| Type of connector | Clamp connector |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | N/50 kA |
| Fit | Rd 8-10 mm |
| Dimension | 20mm |
| Surface | Hot-dip galvanised |
| Material | cast steel |
| Clamping range, max. | 20 mm |
| Clamping range, min. | 10 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6423 kg CO2e / 1 Piece |
Dimensions
| Dimension L | 63 mm |
|---|---|
| Dimension t | 25 mm |
