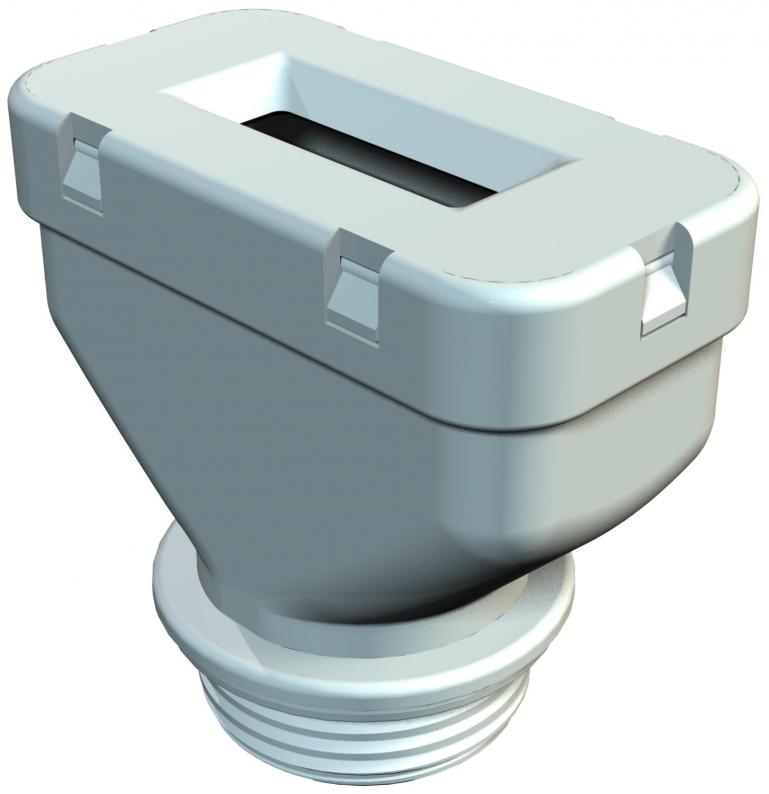

Flat cable threaded connection, PG thread rectangular version, stone grey

Type 106 FL 29 14 40 | Item no. 2012774 | EAN 4012195156857

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

Flat cables/thickness, max.

Flat cables/thickness, min.

Flat cable/width, max.

Flat cable/width, min.

Thread

Smallest selling unit: 15 piece

Description Technical data Downloads Variants

Description

Flat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.

Technical data

Impact-resistant	no
Fibre-glass reinforced	no
Strain relief option	no
Protection rating	IP31
Thread	Pg 29
For Ex zone	Without
Thread type	PG
Bend protection	no
With locknut	no
Sealing insert, multiple	no
Flat cable gland	yes
Type of seal	Sealing ring
Dimension	PG29
Material	Polyethylene
Colour	Stone grey; RAL 7030
CO2 Footprint (GWP) Cradle-to-Gate	0,1102 kg CO₂e / 1 Piece

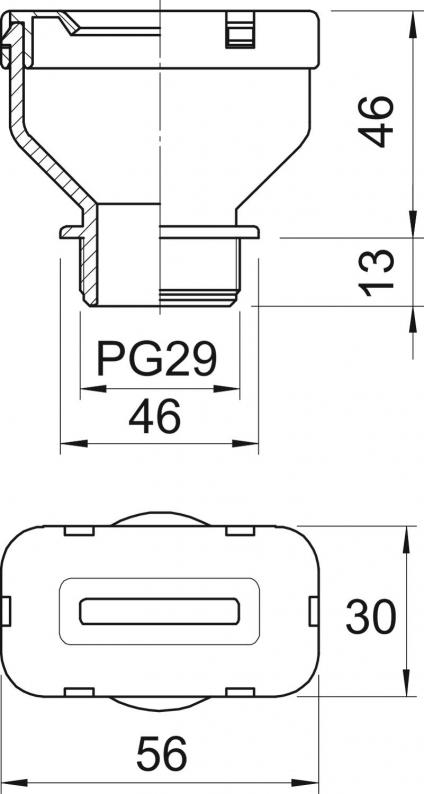

Dimensions

Dimension L	59 mm
Dimension A	30 mm
Flat cables/thickness, max.	14 mm
Flat cables/thickness, min.	11 mm
Flat cable/width, max.	40 mm
Flat cable/width, min.	37 mm
Dimension B	56 mm
Dimension G	PG29 mm
Dimension L1	13 mm
Dimension L2	46 mm
Dimension D	46 mm

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (1)

Declarations (4)

Product images (3)

Tender specifications (2)

Variants

Flat cables/thickness, max.

Flat cables/thickness, min.

Flat cable/width, max.

Flat cable/width, min.

Thread

106 FL 29 14 40

Item no.

2012774

Flat cables/thickness, max.

Flat cables/thickness, min.

Flat cable/width, max.

Flat cable/width, min.

Thread

Pg 29

106 FL 21 6 30

Item no.

2012855

Flat cables/thickness, max.

Flat cables/thickness, min.

Flat cable/width, max.

Flat cable/width, min.

Thread

Pg 21
