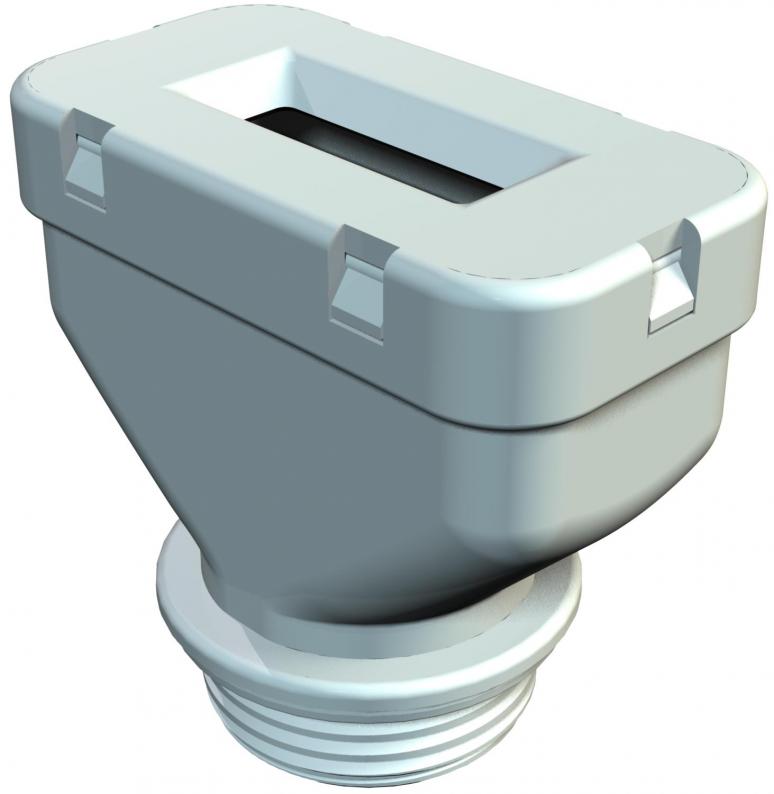

Flat cable threaded connection, metric thread M25, stone grey
Type 106 FL M25 6 30 | Item no. 2013006 | EAN 4012195515234
Item no. / Type
Flat cables/thickness, max.
Flat cables/thickness, min.
Flat cable/width, max.
Flat cable/width, min.
Thread
M25
Smallest selling unit: 25 piece
25piece
Description
Flat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Fibre-glass reinforced | no |
| explosion-proof | no |
| Strain relief option | no |
| Protection rating | IP31 |
| Thread | M25 |
| For Ex zone | Without |
| Thread type | Metric |
| Bend protection | yes |
| With locknut | no |
| Sealing insert, multiple | no |
| Flat cable gland | yes |
| Type of seal | Sealing ring |
| Version for | Straight |
| Dimension | M25 |
| Material | Polyethylene |
| Colour | Stone grey; RAL 7030 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0876 kg CO₂e / 1 Piece |

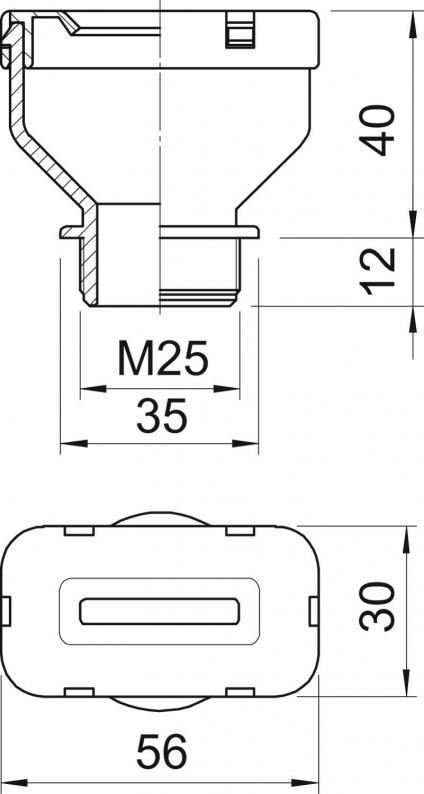

Dimensions
| Dimension L | 52 mm |
|---|---|
| Dimension A | 30 mm |
| Flat cables/thickness, max. | 6 mm |
| Flat cables/thickness, min. | 4 mm |
| Flat cable/width, max. | 30 mm |
| Flat cable/width, min. | 27 mm |
| Dimension B | 56 mm |
| Dimension G | M25 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 40 mm |
| Dimension D | 35 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Flat cables/thickness, max.
Flat cables/thickness, min.
Flat cable/width, max.
Flat cable/width, min.
Thread
Item no.
106 FL M25 6 30
6
4
30
27
M25
2013006
106 FL M25 8 33
8
6
33
30
M25
2013007
106 FL M25 9 22
9
7
22
19
M25
2013008
106 FL M25 10 31
10,5
8,5
31,5
28,5
M25
2013011
Flat cables/thickness, max.
Flat cables/thickness, min.
Flat cable/width, max.
Flat cable/width, min.
106 FL M25 6 30
Item no.
2013006
Flat cables/thickness, max.
6
Flat cables/thickness, min.
4
Flat cable/width, max.
30
Flat cable/width, min.
27
Thread
M25
106 FL M25 8 33
Item no.
2013007
Flat cables/thickness, max.
8
Flat cables/thickness, min.
6
Flat cable/width, max.
33
Flat cable/width, min.
30
Thread
M25
106 FL M25 9 22
Item no.
2013008
Flat cables/thickness, max.
9
Flat cables/thickness, min.
7
Flat cable/width, max.
22
Flat cable/width, min.
19
Thread
M25
106 FL M25 10 31
Item no.
2013011
Flat cables/thickness, max.
10,5
Flat cables/thickness, min.
8,5
Flat cable/width, max.
31,5
Flat cable/width, min.
28,5
Thread
M25
