Flat angle, for cable duct type LKM 60100

Type LKM F60100FS | Item no. 6248004 | EAN 4012196312559

Item no. / Type

6248004 / LKM F60100FS

Colour

zinc

Smallest selling unit: 0 translation missing

Description

Flat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover

Maintain electrical functions	yes
for duct dimension	60 x 100
Halogen-free	yes
Self-extinguishing	no
Protective film	no
Angle range, max.	90 mm
Angle range, min.	90 mm
Protection rating	IP30
Protection rating IK code	IK10
Version for	Base and cover
Fastening type	Base perforation
Trunking depth	64 mm
Duct height, min.	64 mm
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Dimension	60x100mm
Surface	Strip galvanized
Material	Steel
Colour	zinc
Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	3,2241 kg CO2e / 1 Piece

0 selected

Data sheet (1)

Catalogues & Flyers (5)

Declarations (4)

Certificates (1)

Instructions and Aid (2)

Product images (2)

Tender specifications (2)

LKM F60100FS

Item no.

6248004

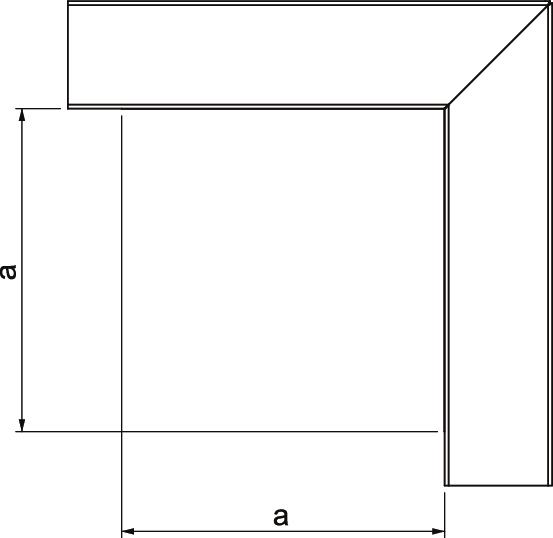

Dimension a

140

Trunking depth

Colour

zinc
