FireBox T60 with plug-in seals
Type T60ED 06A | Item no. 7205741 | EAN 4012197356385
Item no. / Type
7205741 / T60ED 06A
Smallest selling unit: 1 piece
1piece
Description

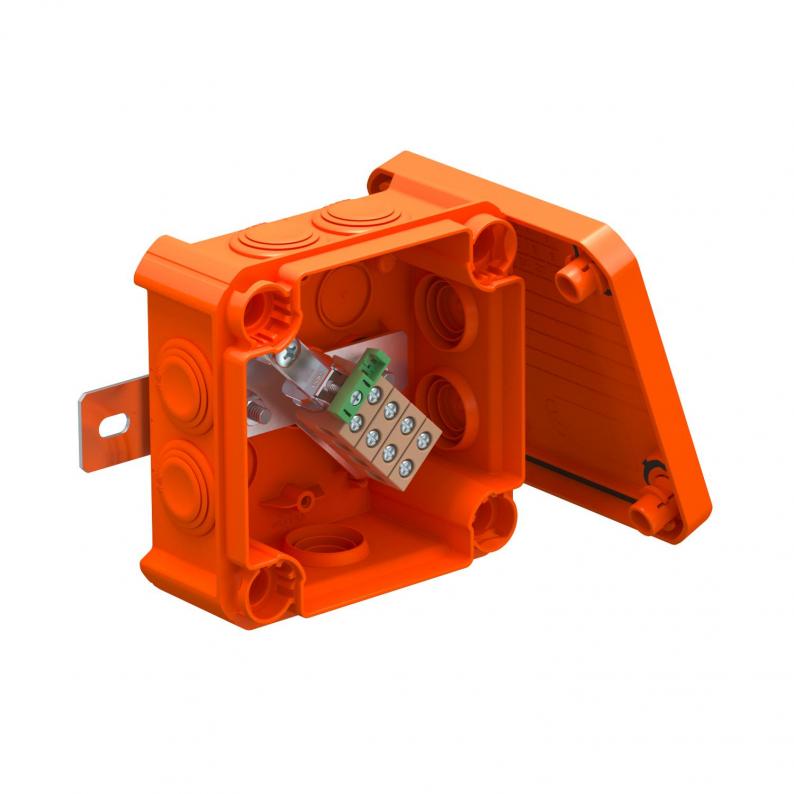

Junction box with ceramic terminals and soft plug-in seals. Sufficiently large wiring compartment through diagonally arranged connection unit with completely pre-mounted, high-temperature-resistant ceramic terminals. Green-yellow labelled protective conductor terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic terminals were tested according to DIN EN 60998-2-1:2004.
Technical data

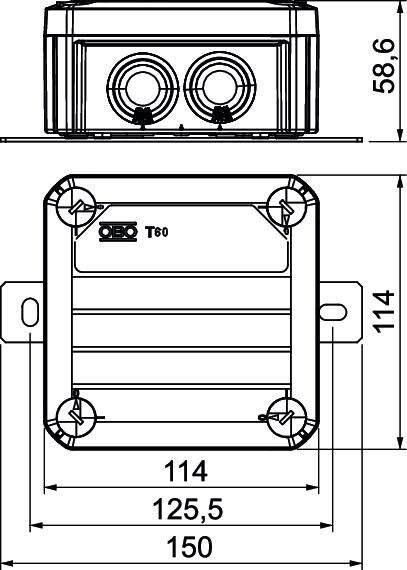

Dimensions
| Length | 114 mm |
|---|---|
| Width | 114 mm |
| Height | 58,6 mm |
| Clear internal dimensions | 100x100x48 mm |
| Dimension L | 114 mm |
| Dimension B | 114 mm |
| Dimension H | 58,6 mm |
| Dimension L1 | 125,5 mm |
| Dimension L2 | 150 mm |
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| Number of terminals | 5 |
| Entry from rear | no |
| Transparent lid | no |
| Protection rating | IP66 |
| Nominal voltage | 660 V |
| Expandable | no |
| with lid | yes |
| Sealable | no |
| For Ex zone | Without |
| Maintain electrical functions | E 90 |
| Explosion-tested version | no |
| Type of housing penetration | Cuttable stepped membrane |
| With screening | no |
| Weatherproof | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Nominal cross-section, min. | 6 mm² |
| Shape | Rectangular |
| Equipment | Terminal |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Entries | <TEXT><P>7 x M25</P></TEXT> |
| Dimension | 114x114x57 |
| Material | Polypropylene |
| Colour | Pastel orange; RAL 2003 |
| Single terminals | 4 |
| Protective terminal | 1 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1135 kg CO2e / 1 Piece |
