Fastening clip, plant standard 7855, double-lobe
Type WN 7855 B 10
|Item no. 1044192
|EAN 4012195030133
Item no. / Type
For diameter
Smallest selling unit: 100 piece
100piece
piece
Description
Dimensions to Siemens standard SN 78550, shape B, with strongly rounded edges, thus particularly suitable for sensitive cables.
* Sizes 3 to 10 not suitable for nail device.
* Sizes 3 to 10 not suitable for nail device.
Technical data

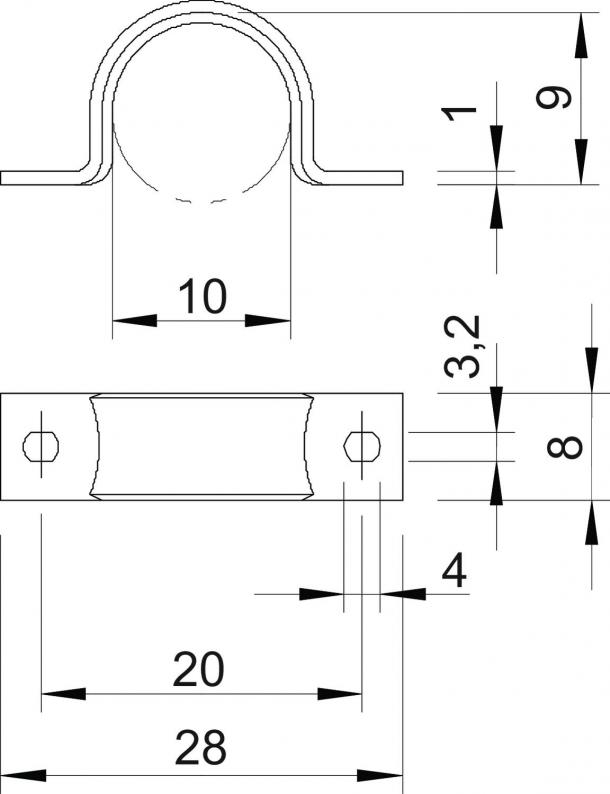

Dimensions
| Length | 28 mm |
|---|---|
| Width | 8 mm |
| Height | 9 mm |
| Dimension L | 28 mm |
| Dimension A | 28 mm |
| Dimension d | 3,2 mm |
| Dimension B | 20 mm |
| Dimension H | 9 mm |
| Dimension t | 1 mm |
| Dimension b | 8 mm |
| Dimension e | 4 mm |
| Dimension D | 10 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| For diameter | 10 |
| Hole size | 3,2 x 4 mm |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Nominal diameter | 10 mm |
| Distance to the wall | no |
| Version for | Two-lobe |
| Fastening type | Screw hole |
| Dimension | 10mm |
| Surface | Electrogalvanized, transparently passivated |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0054 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
For diameter
Item no.
WN 7855 B 3
3
1044044
WN 7855 B 4
4
1044060
WN 7855 B 7
7
1044125
WN 7855 B 8
8
1044141
WN 7855 B 9
9
1044176
WN 7855 B 10
10
1044192
WN 7855 B 12
12
1044214
WN 7855 B 14
14
1044230
