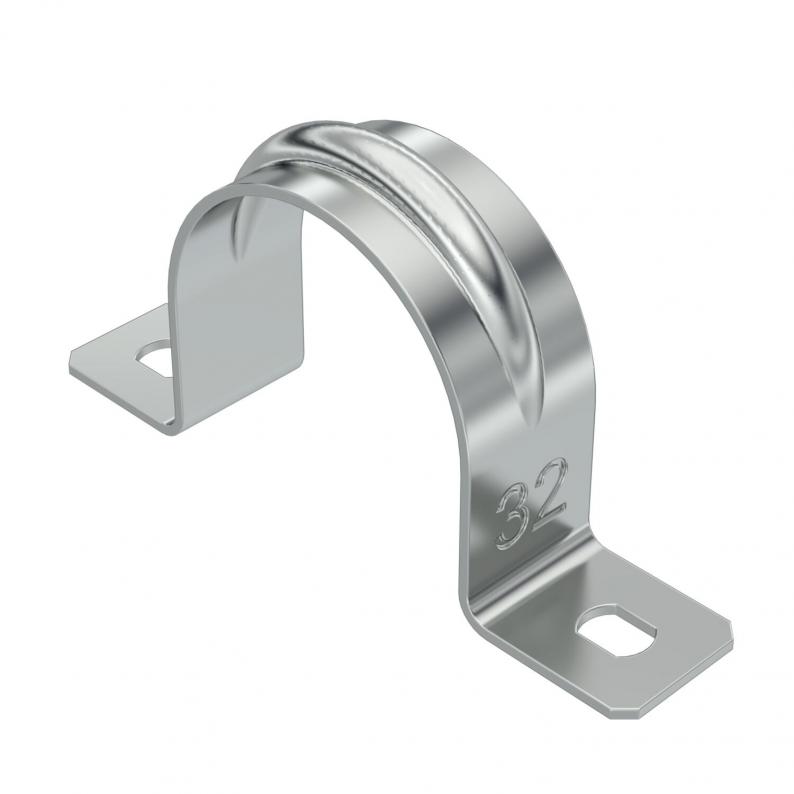

Fastening clip 605, medium duty, G
Type 605 32 G
|Item no. 1018337
|EAN 4012195017479
Item no. / Type
For diameter
Smallest selling unit: 100 piece
100piece
piece
Description
Two lobe fastening clips for cables and pipes.
* Sizes 7 to 12 not suitable for bolt-firing tool.
* Sizes 7 to 12 not suitable for bolt-firing tool.
Technical data
Dimensions
| Length | 66 mm |
|---|---|
| Width | 14 mm |
| Height | 30 mm |
| Dimension A | 66 mm |
| Dimension d | 5,5 mm |
| Dimension B | 52 mm |
| Dimension H | 30 mm |
| Dimension t | 1 mm |
| Dimension b | 14 mm |
| Dimension e | 6 mm |
| Dimension D | 32 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| For diameter | 32 |
| Hole size | 4,5 x 6 mm |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Nominal diameter | 32 mm |
| Distance to the wall | no |
| Version for | Two-lobe |
| Fastening type | Screw hole |
| Dimension | 32mm |
| Surface | Electrogalvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0308 kg CO2e / 1 Piece |
