Fastening clip 604, light duty

Fastening clip 604, light duty

Type 604 8 G
|
Item no. 1003089
|
EAN 4012195001096
Show all variants
Item no. / Type
For diameter

Smallest selling unit: 100 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

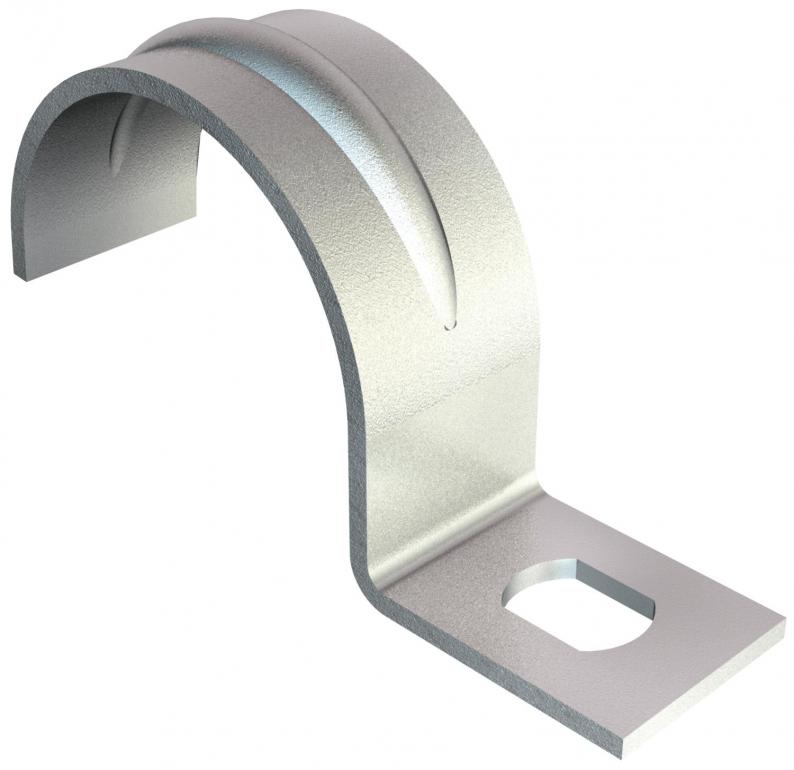

Single-lobe fastening clip for cables and pipes.
* Sizes 3 and 4 are not suitable for nail device
* Sizes 3 to 21 are not suitable for bolt-firing tool
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length21 mm
Width8 mm
Height7 mm
Dimension L21 mm
Dimension A5,5 mm
Dimension d4,5 mm
Dimension H7 mm
Dimension t0,7 mm
Dimension b8 mm
Dimension e6 mm
Dimension D8 mm

Technical data

Material thickness0,7 mm
For diameter8
Hole size4,5 x 6 mm
Halogen-freeyes
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter8 mm
Distance to the wallno
Version forSingle-lobe
Fastening typeScrew hole
Dimension8mm
SurfaceElectrogalvanized
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate0,0043 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

For diameter
604 4 G
Item no.
1003046
For diameter
4
604 6 G
Item no.
1003062
For diameter
6
604 8 G
Item no.
1003089
For diameter
8
604 10 G
Item no.
1003100
For diameter
10
604 13 G
Item no.
1003135
For diameter
13
604 16 G
Item no.
1003178
For diameter
16
604 20 G
Item no.
1003208
For diameter
20
604 25 G
Item no.
1003259
For diameter
25
604 32 G
Item no.
1003321
For diameter
32
604 40 G
Item no.
1003402
For diameter
40
604 47 G
Item no.
1003461
For diameter
47
