Fastening clip
Type 255 5.2 LGR
|Item no. 2222051
|EAN 4012195214090
Item no. / Type
For diameter
Smallest selling unit: 100 piece
100piece
piece
Description

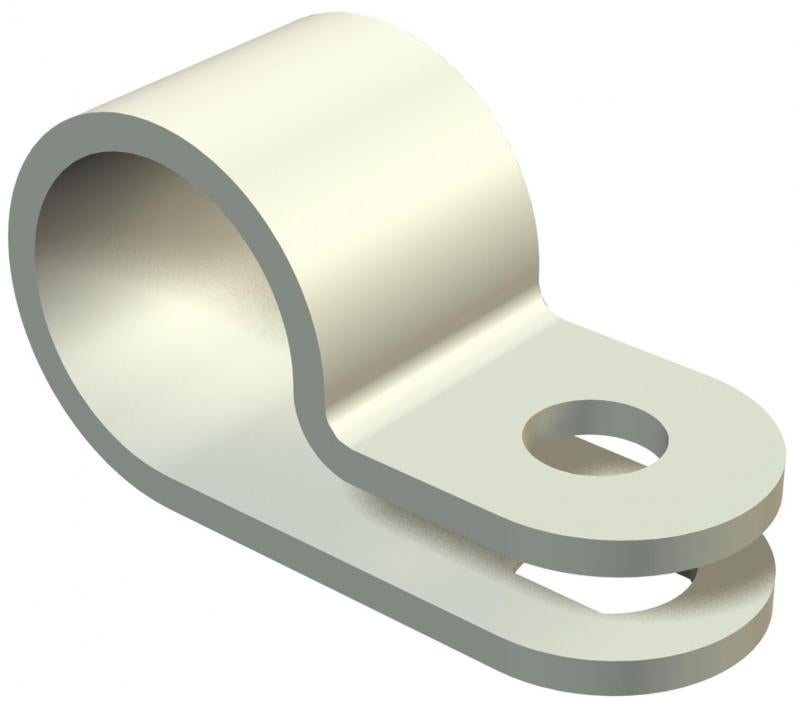

Fastening clip 5.2 mm
Technical data
Technical data
| For diameter | 5,2 |
|---|---|
| Halogen-free | yes |
| UV-resistant | no |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Nominal diameter | 5,2 mm |
| Version for | Closed |
| Fastening type | Screw hole |
| Dimension | 5,2mm |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |

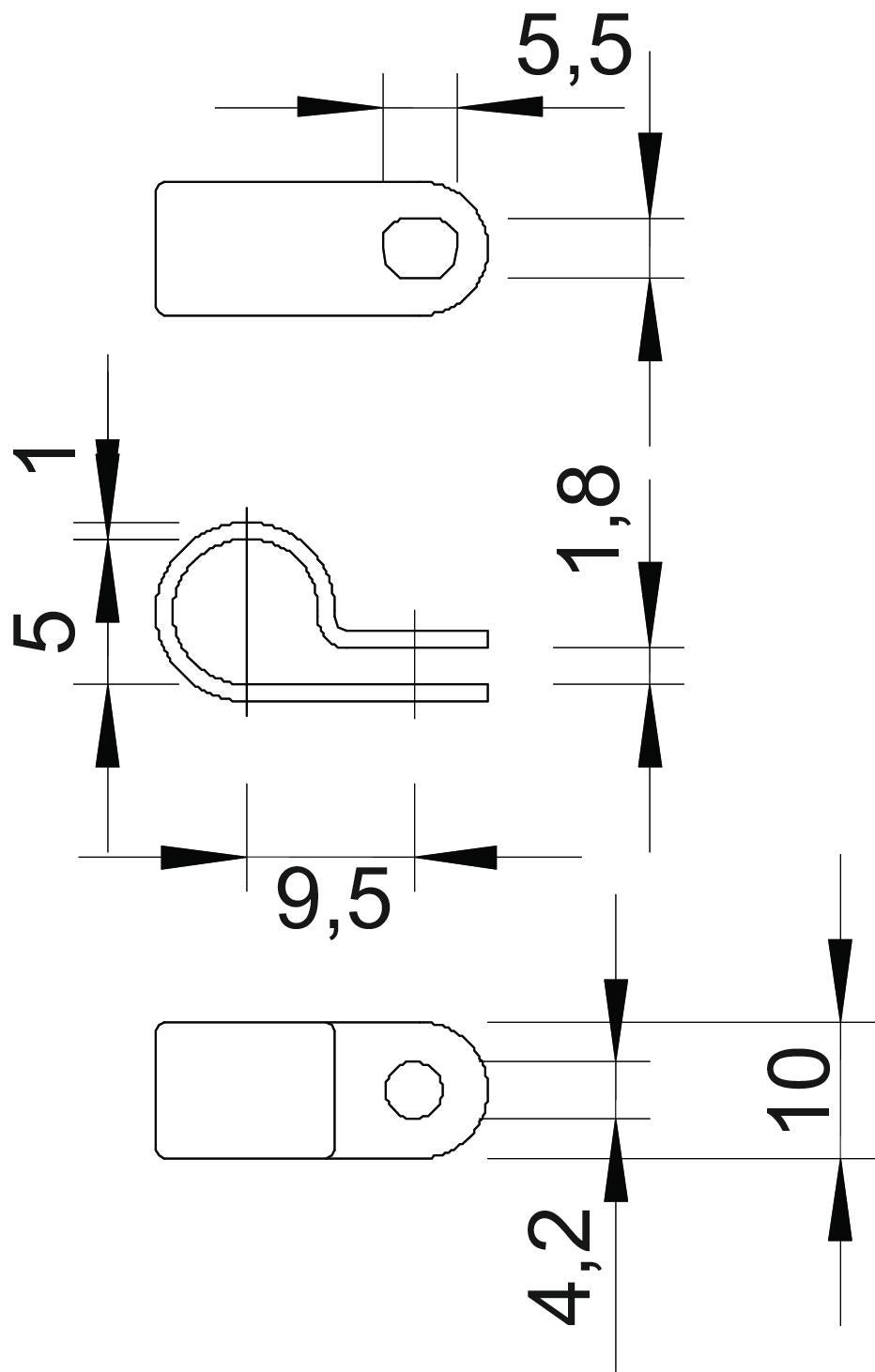

Dimensions
| Dimension d | 5 mm |
|---|---|
| Dimension e | 9,5 mm |
| Dimension x | 1,8 mm |
| Dimension s | 1 mm |
Environmental Data
0,0023 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0023 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
For diameter
Item no.
255 3.2 LGR
3,2
2222035
255 5.2 LGR
5,2
2222051
255 6.5 LGR
6,5
2222078
255 8 LGR
8
2222086
For diameter
255 3.2 LGR
Item no.
2222035
For diameter
3,2
255 5.2 LGR
Item no.
2222051
For diameter
5,2
255 6.5 LGR
Item no.
2222078
For diameter
6,5
255 8 LGR
Item no.
2222086
For diameter
8
