Equipotential busbar for indoors
Type 1801 12x25 1x95
|Item no. 5015683
|EAN 4012196868421
Item no. / Type
Length
Width
Height
Smallest selling unit: 1 piece
1piece
piece

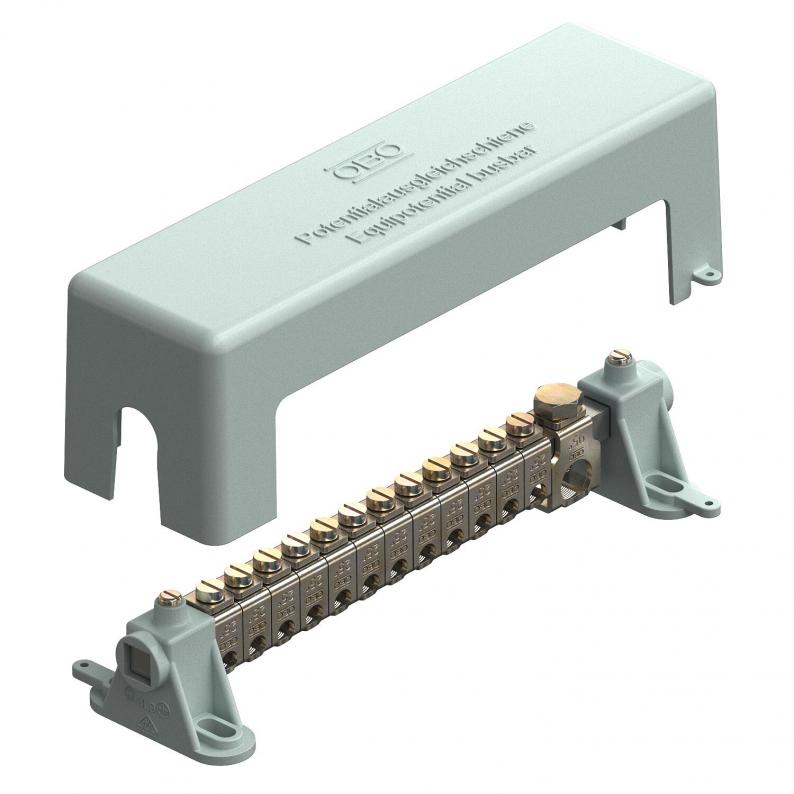

Description
Equipotential busbar for equipotential bonding to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding to DIN VDE 0185-305
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable/labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)
Connection options:
• 12 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 1 single or multi-wire cable 25–95 mm² or fine-wire cable to 70 mm² (max. Ø 13.5 mm)
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable/labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)
Connection options:
• 12 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 1 single or multi-wire cable 25–95 mm² or fine-wire cable to 70 mm² (max. Ø 13.5 mm)
Technical data

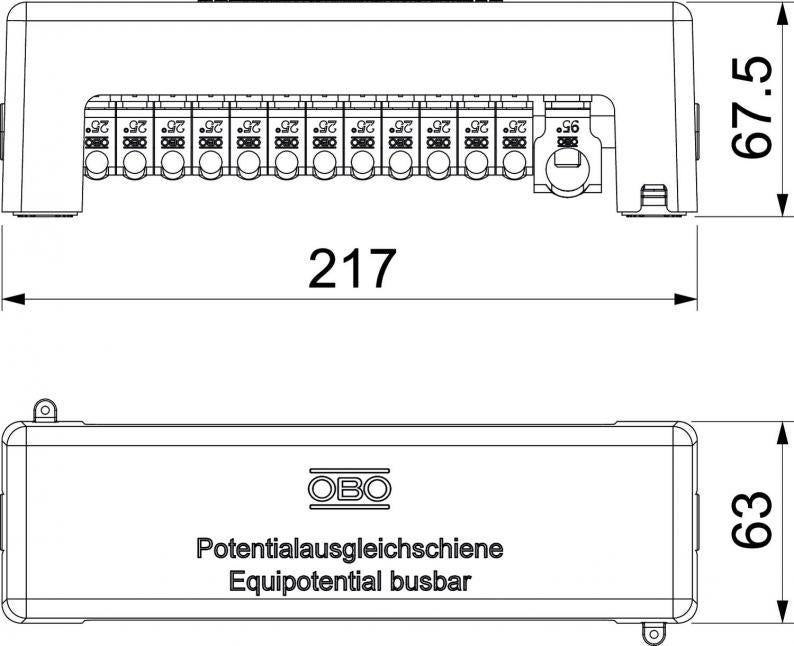

Dimensions
| Length | 217 mm |
|---|---|
| Width | 63 mm |
| Height | 67,5 mm |
Technical data
| Insulator | yes |
|---|---|
| Quantity of cable connections up to 95 mm², rigid | 2 |
| Material of the contact rail | Brass |
| Material of the terminal | Steel |
| Surface of the contact rail | Nickel-plated |
| Surface of the terminal | Electrogalvanised |
| Version for | With cover hood |
| Type | Modular structure |
| Dimension | 217mm |
| Material | Brass |
| Colour | Grey |
Environmental Data
1,5108 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5108 kg CO2e / 1 Piece |
|---|
