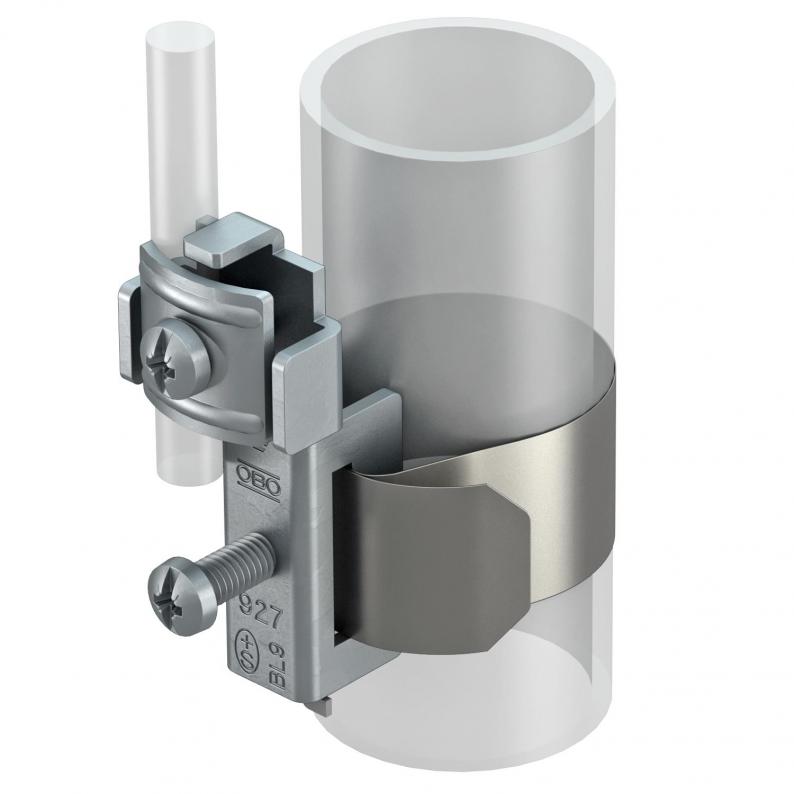

Earthing pipe clamp VA
Type 927 1 | Item no. 5057515 | EAN 4012195388579
Item no. / Type
Dimension L
Clamping range D
Smallest selling unit: 10 piece
10piece
Description
• For pipes of Ø 3/8 - 6"
• Connection options: Max. 2 cables 2.5-25 mm²
• Round conductor Rd 8
• Clamp element, bolts and tightening strap made of rustproof stainless steel (VA)
• Connection options: Max. 2 cables 2.5-25 mm²
• Round conductor Rd 8
• Clamp element, bolts and tightening strap made of rustproof stainless steel (VA)
Technical data
Technical data
| For pipe diameter, max. | 48 mm |
|---|---|
| For pipe diameter, min. | 17,2 mm |
| Clamping range D | 3/8 - 1 1/2 |
| Number of conductors | 2 |
| Cross-section of cable to be connected, max. | 25 mm² |
| Cross-section of cable to be connected, min. | 2,5 mm² |
| Lightning current carrying capacity | N/50 kA |
| Clamping range D, max. | 48 mm |
| Clamping range D, min. | 17,2 mm |
| Dimension | 3/8-1 1/2" |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4758 kg CO2e / 1 Piece |
Dimensions
| Dimension L | 200 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Dimension L
Clamping range D
Item no.
927 1
200
3/8 - 1 1/2
5057515
927 2
395
3/8 - 4
5057523
927 4
555
3/8 - 6
5057558
Dimension L
Clamping range D
927 1
Item no.
5057515
Dimension L
200
Clamping range D
3/8 - 1 1/2
927 2
Item no.
5057523
Dimension L
395
Clamping range D
3/8 - 4
927 4
Item no.
5057558
Dimension L
555
Clamping range D
3/8 - 6
