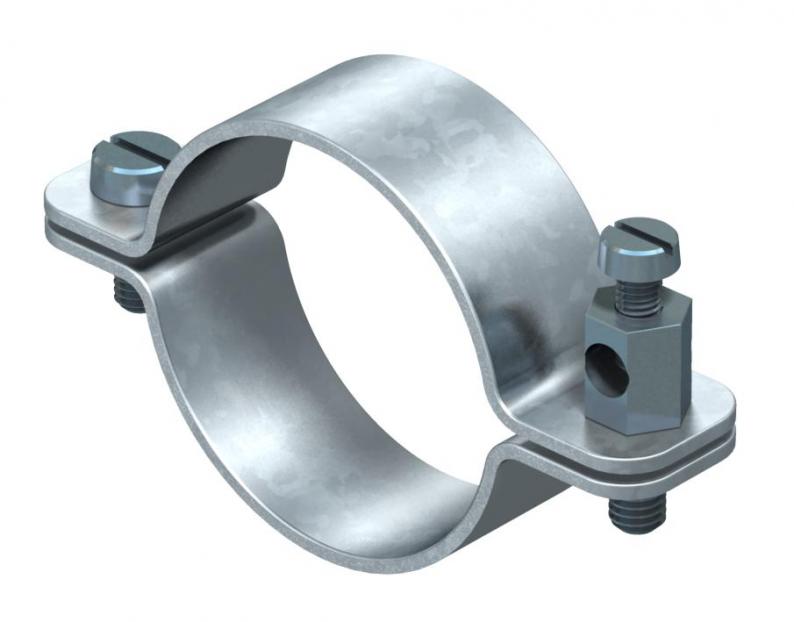

Earthing clamp, type 942
Type 942 28 | Item no. 5038081 | EAN 4012195384793
Item no. / Type
Dimension X
Dimension A
Clamping range D, max.
Clamping range D, min.
Smallest selling unit: 10 piece
10piece
Description
• For pipes 1/8‒1 1/2" or Ø 8‒49 mm
• Connection options: Cables up to 25 mm²
• With connection clip and cylinder bolt M6 x 16 made of brass, nickel-plated
• Clamp cover and base made of copper, nickel-plated
• Connection options: Cables up to 25 mm²
• With connection clip and cylinder bolt M6 x 16 made of brass, nickel-plated
• Clamp cover and base made of copper, nickel-plated
Technical data
Dimensions
| Dimension X | 3 mm |
|---|---|
| Dimension A | 63 mm |
| Dimension b | 20 mm |
Technical data
| Clamping range D | 3/4 |
|---|---|
| Number of conductors | 1 |
| Cross-section of cable to be connected, max. | 25 mm² |
| Cross-section of cable to be connected, min. | 0 mm² |
| Clamping range D, max. | 28 mm |
| Clamping range D, min. | 24 mm |
| Dimension | 24-28mm |
| Surface | Nickel-plated |
| Material | Copper |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1943 kg CO2e / 1 Piece |
