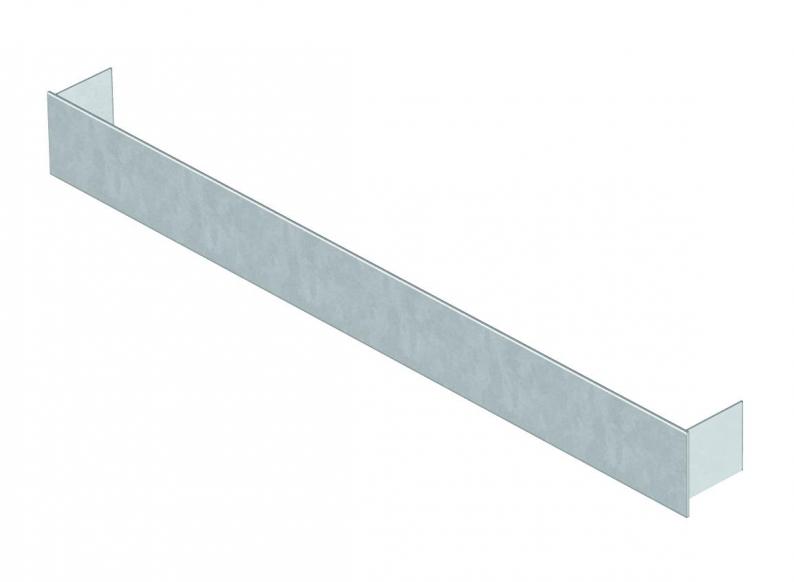

Duct end closure piece, height 38 mm
Type SES 35037
|Item no. 7404018
|EAN 4012195098935
Item no. / Type
7404018 / SES 35037
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
End cap for screed-covered and flushfloor underfloor installation ducts.
Technical data
Dimensions
| Width | 350 mm |
|---|---|
| Height | 38 mm |
| Dimension a | 350 mm |
| Dimension h | 37 mm |
Technical data
| Suitable for screed-covered underfloor ducts | yes |
|---|---|
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 350 mm |
| Application area | Screed-covered |
| Suitable for flushfloor, open underfloor trunking | no |
| Duct height, min. | 38 mm |
| Dimension | 350x37mm |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Height
Item no.
SES 35037
350
38
7404018
SES 35037
Item no.
7404018
Width
350
Height
38
