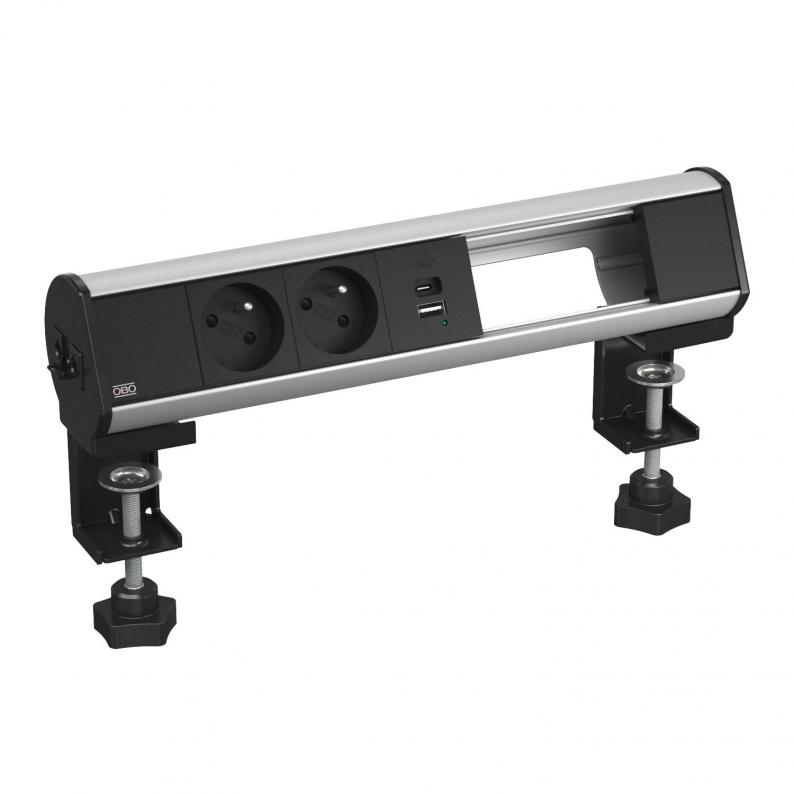

Deskbox with fastening clamp, 2 NF sockets, USB Charger

Type DBL-1B F2S 1C | Item no. 6116772 | EAN 4012197333300

Description

Ready-for-connection Deskbox DBL for the direct supply of workstations with power, communications and data technology connections. With a Wieland GST18® connector and cable outlet at the left side of the profile. Toolless mounting with 2 fastening clamps for tabletop thicknesses of 8 to 40 mm and 40 to 70 mm. The Deskbox is equipped with 2 black NF sockets and a 18W USB A+C USB Charger. In addition, the Deskbox has space for retroinstallation of 4 communications and data technology Keystone modules.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length145 mm
Height59 mm

Technical data

Foldableno
Extendableno
Dimension325x71x78
SurfaceAnodised
MaterialAluminium
Colouraluminium
CO2 Footprint (GWP) Cradle-to-Gate11,93 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Variants

DBL-1B D2S 1C
Item no.
6116762
DBL-1B F2S 1C
Item no.
6116772
