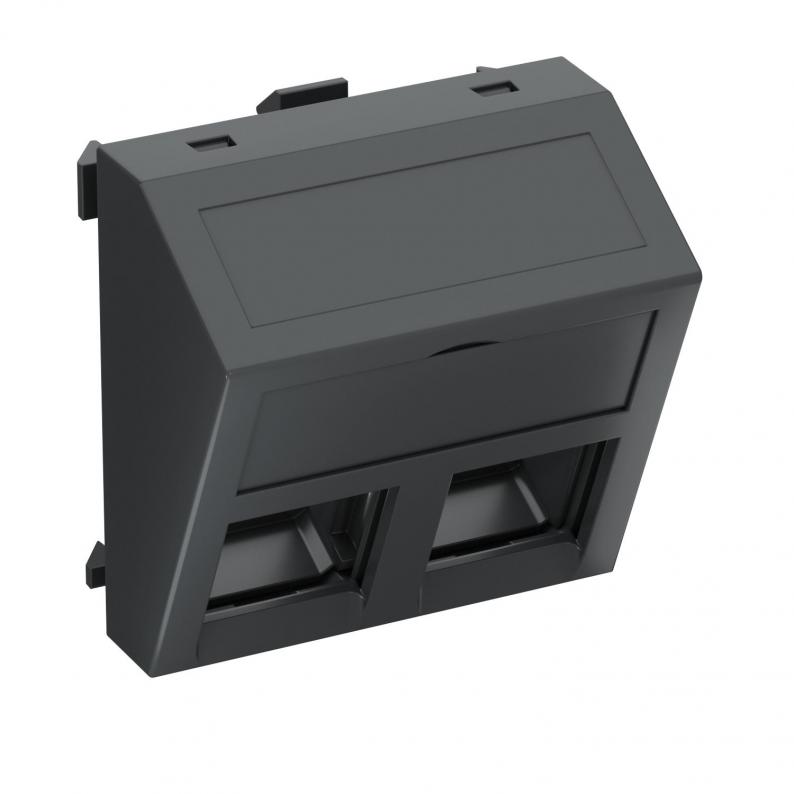

Data technology support, 1 module, slanting outlet, type C, without dust protection slider

Type DTS-02C SWGR1 | Item no. 6119288 | EAN 4012195887393

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

6119288 / DTS-02C SWGR1

With dust protection

Colour

Black-grey; RAL 7021

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Data technology support with slanting outlet and without a locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type C has a mounting opening of 19.30 x 14.80 mm and is designed for direct fastening of the data connection modules in the mounting opening.
The type C data technology support (without dust protection slider) is suitable for accepting the following data connection modules: 3M: Volition K6, K10 and Cat. 6A.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.

Technical data

Dimensions

Width	45 mm
Height	45 mm

Technical data

Hinged cover	no
Halogen-free	yes
Number of units	1
Strain relief option	no
Protection rating	IP20
Support ring	no
With dust protection	no
With printed label	no
Lamp-wire connector	no
Depth	26 mm
Surface version	Matt
Transparent	no
Combination	Basic element with central cover plate
Use	Installable data connector
Labelling panel	With labelling panel
Fastening type	Lock
Mounting opening	Type C
Dimension	45x45mm
Material	Polycarbonate
Colour	Black-grey; RAL 7021
CO2 Footprint (GWP) Cradle-to-Gate	0,162 kg CO2e / 1 Piece
