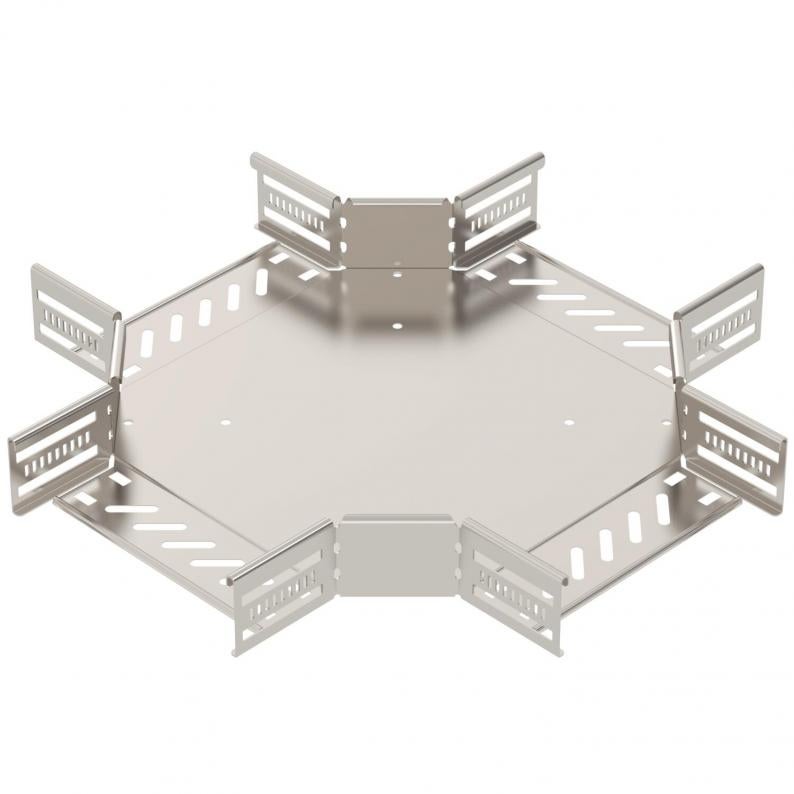

Cross-over 60/200 A4

Cross-over 60/200 A4

Type RK 620 A4
|
Item no. 7027522
|
EAN 4012197339838
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

Cross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Height60 mm
Dimension B200 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
NATO hole patternno
Material thickness, floor plate0,8 mm
Rail thickness1,25 mm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.120 °C
Dimension60x200
SurfaceBright, treated
MaterialStainless steel 1.4571
Colourstainless steel
Type of connector, cable support systemScrewed
Recommended quantity of bolts24 St.

Environmental Data

12,2096 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate12,2096 kg CO2e / 1 Piece
CO₂ Footprint (GWP)12,2096 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RK 610 A4
Item no.
7027520
Width
100
RK 620 A4
Item no.
7027522
Width
200
RK 630 A4
Item no.
7027524
Width
300
RK 640 A4
Item no.
7027526
Width
400
RK 650 A4
Item no.
7027528
Width
500
RK 660 A4
Item no.
7027530
Width
600
