Cover with turn buckle DD

Cover with turn buckle DD

Type DRL 300 DD | Item no. 6052712 | EAN 4012196038954

Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

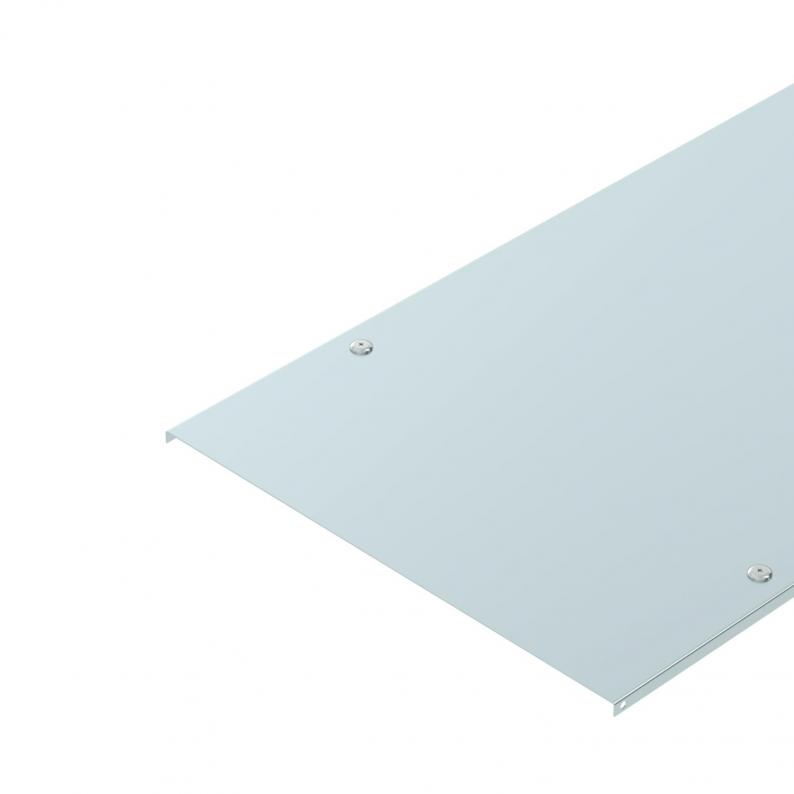

Cover for cable trays and cable ladders with turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.

Transverse bead from 500 mm width.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

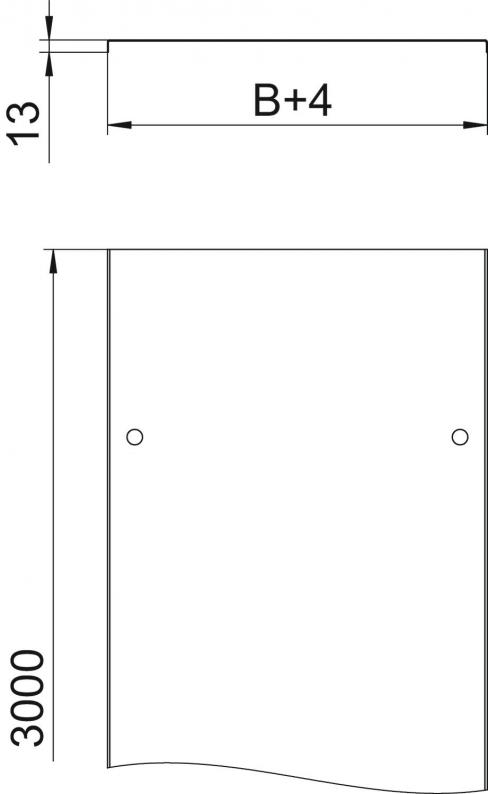

Dimensions

Length3000 mm
Width300 mm
Height35 mm
Dimension B300 mm
Dimension H15 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1 mm
Number of turn buckles6 St.
Suitable for mesh cable trayno
Suitable for cable ladderyes
Suitable for cable trayyes
Fastening typeSash lock
Dimension300x3000
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate5,9476 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (7)
Product images (3)
3D data downloads (2)
Tender specifications (2)

Accessories

Mounting accessories

Item no. 6065018

Turn buckle FT
Type
DRL H S FT

Smallest selling unit: 20 piece

Variants

Width
Plate thickness
DRL 100 DD
Item no.
6052703
Length
3000
Width
100
Plate thickness
1
DRL 150 DD
Item no.
6052706
Length
3000
Width
150
Plate thickness
1
DRL 200 DD
Item no.
6052709
Length
3000
Width
200
Plate thickness
1
DRL 300 DD
Item no.
6052712
Length
3000
Width
300
Plate thickness
1
DRL 400 DD
Item no.
6052715
Length
3000
Width
400
Plate thickness
1
DRL 500 DD
Item no.
6052718
Length
3000
Width
500
Plate thickness
1,25
DRL 600 DD
Item no.
6052724
Length
3000
Width
600
Plate thickness
1,25
