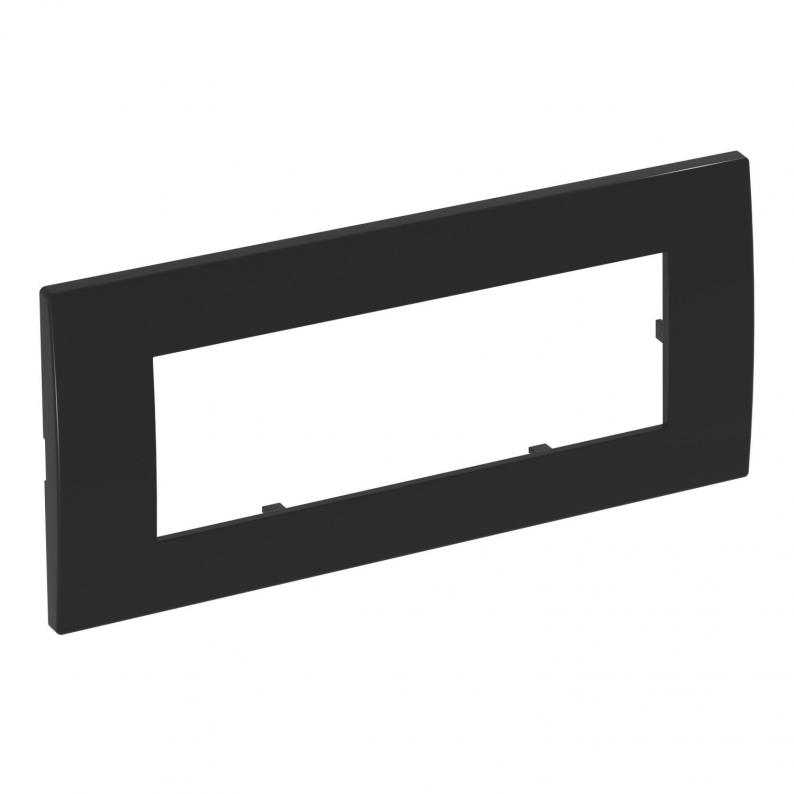

Cover frame AR45-F3, for accessory mounting box 71GD9-2, triple

Type AR45-F3 SWGR

Item no. 6119374

EAN 4012195889007

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

Mounting direction

Number of units

Smallest selling unit: 1 piece

piece

Description Technical data Downloads Variants

Description

Front locking cover frame for Modul 45 devices, triple, without labelling panel for horizontal and vertical device installation, for locking in accessory mounting box 71GD9-2 or in mounting support 71MT3 45-2.
For installation in Rapid 80 device installation trunking and ISS service poles.

Technical data

Dimensions

Width	185 mm
Height	84 mm

Technical data

Hinged cover	no
Text field/inscription field	no
Halogen-free	yes
Number of units	3
Protection rating	Other
Suitable for flush-mounted installations	no
Suitable for underfloor duct socket	no
Suitable for device installation ducts	yes
Suitable for built-in installations	yes
Depth	8,5 mm
Surface version	Matt
Mounting direction	Horizontal and vertical
Einbaubreite	135 mm
Installation height	45 mm
Transparent	no
Number of units, horizontal	3
Anzahl der Einheiten vertikal	3
Fastening type	Clamp fastening
Dimension	84x185mm
Material	Polycarbonate
Colour	Black-grey; RAL 7021
Antibacterial treatment	no
With mounting frame	no
Diameter opening	0
CO2 Footprint (GWP) Cradle-to-Gate	0,1497 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (3)

Declarations (2)

Instructions and Aid (1)

Product images (2)

3D data downloads (3)

Tender specifications (2)

Variants

Mounting direction

AR45-F3 SWGR

Item no.

6119374

Number of units

Mounting direction

Horizontal and vertical

AR45-BF3 SWGR

Item no.

6119384

Number of units

Mounting direction

Horizontal

AR45-BSF3 SWGR

Item no.

6119388

Number of units

Mounting direction

Vertical
