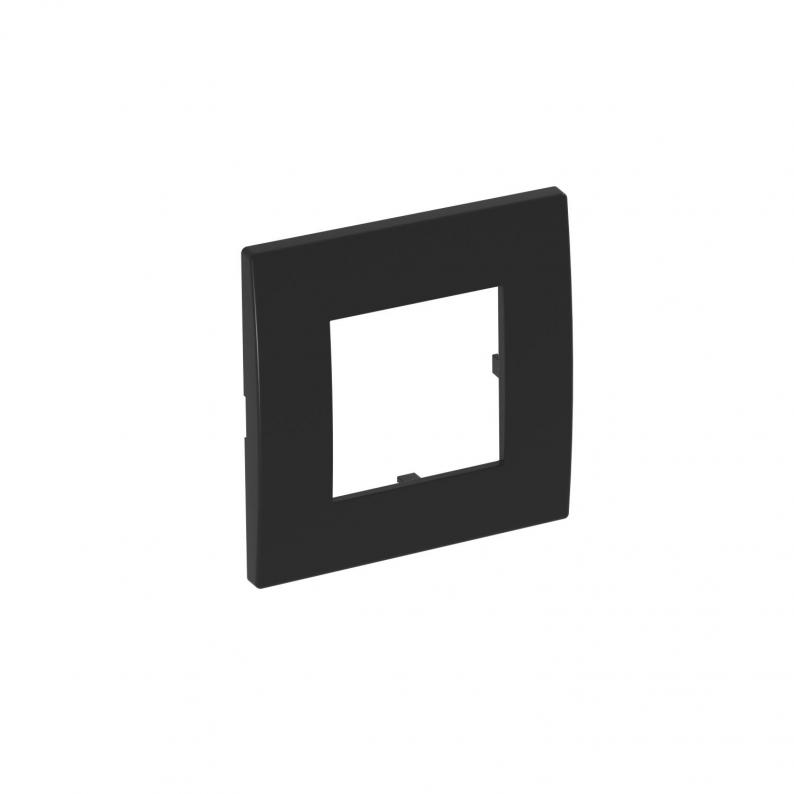

Cover frame AR45-F1, for accessory mounting box 71GD8-2, single

Cover frame AR45-F1, for accessory mounting box 71GD8-2, single

Type AR45-F1 SWGR
|
Item no. 6119324
|
EAN 4012195888796
Show all variants
Item no. / Type
Mounting direction
Number of units
1

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Front locking cover frame for Modul 45 devices, single, without labelling panel for horizontal and vertical device installation, for locking in accessory mounting box 71GD8-2.
For installation in Rapid 80 device installation trunking and ISS service poles.

  • CO₂ footprint (PCF)

Technical data

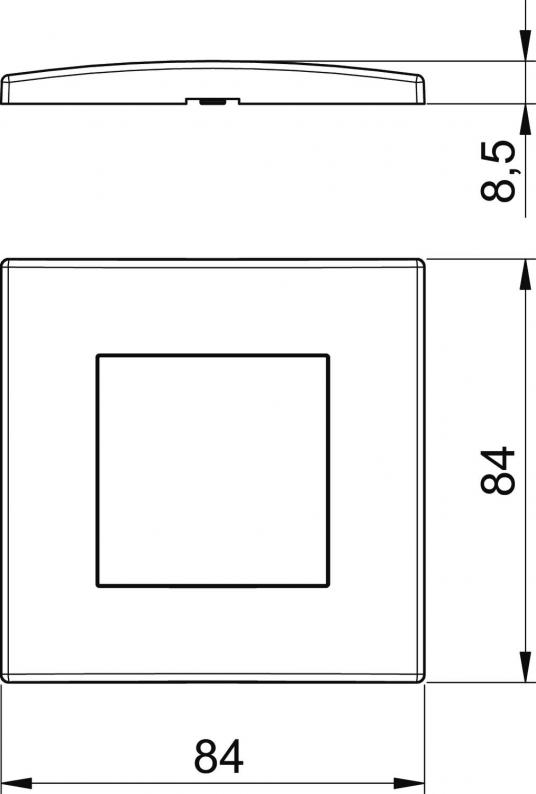

Dimensions

Width84 mm
Height84 mm

Technical data

Hinged coverno
Text field/inscription fieldno
Halogen-freeyes
Number of units1
Protection ratingOther
Suitable for flush-mounted installationsno
Suitable for underfloor duct socketno
Suitable for device installation ductsyes
Suitable for built-in installationsyes
Depth8,5 mm
Surface versionMatt
Mounting directionHorizontal and vertical
Einbaubreite45 mm
Installation height45 mm
Transparentno
Number of units, horizontal1
Anzahl der Einheiten vertikal1
Fastening typeClamp fastening
Dimension84x84mm
MaterialPolycarbonate
ColourBlack-grey; RAL 7021
Antibacterial treatmentno
With mounting frameno
Diameter opening0
CO2 Footprint (GWP) Cradle-to-Gate0,1055 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (3)
Tender specifications (2)

Variants

Mounting direction
AR45-F1 SWGR
Item no.
6119324
Number of units
1
Mounting direction
Horizontal and vertical
AR45-BF1 SWGR
Item no.
6119334
Number of units
1
Mounting direction
Horizontal
AR45-BSF1 SWGR
Item no.
6119339
Number of units
1
Mounting direction
Vertical
