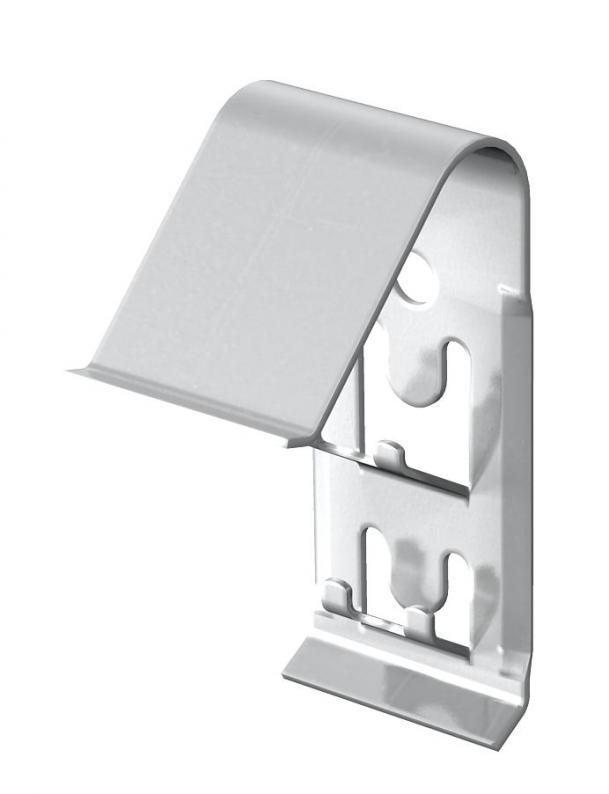

Cover clamp, universal A2
Type DKU A2 | Item no. 6065600 | EAN 4012196441372
Item no. / Type
6065600 / DKU A2
Smallest selling unit: 20 piece
20piece
Description
Cover clamp for universal fastening of covers on cable trays, mesh cable trays and AZ small ducts.
The cover clamp is not suitable for use with mesh cable trays with a side height of 35 mm.
The cover clamp is not suitable for use with mesh cable trays with a side height of 35 mm.
Depending on the tray width, 4–6 cover clamps are required for secure fastening of a 3 m cover.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Surface | Bright, treated |
| Material | Stainless steel 1.4310 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0419 kg CO2e / 1 Piece |

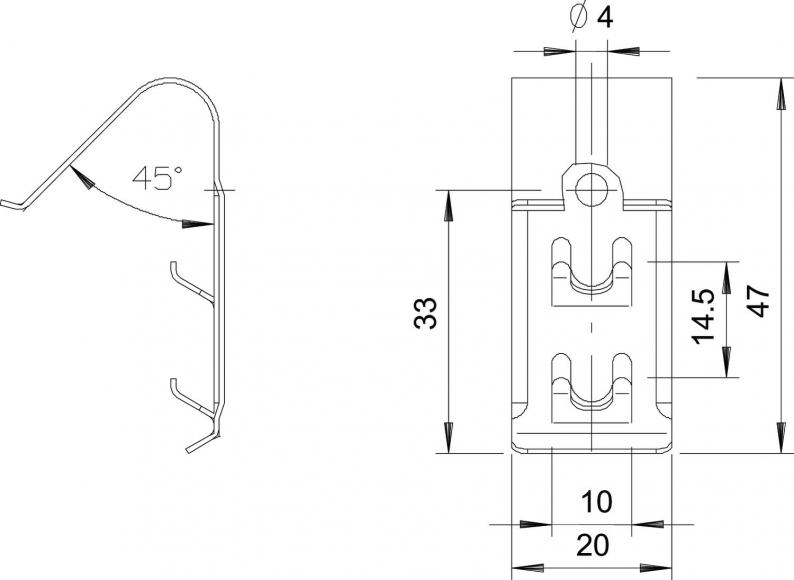

Dimensions
| Dimension B | 47 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
