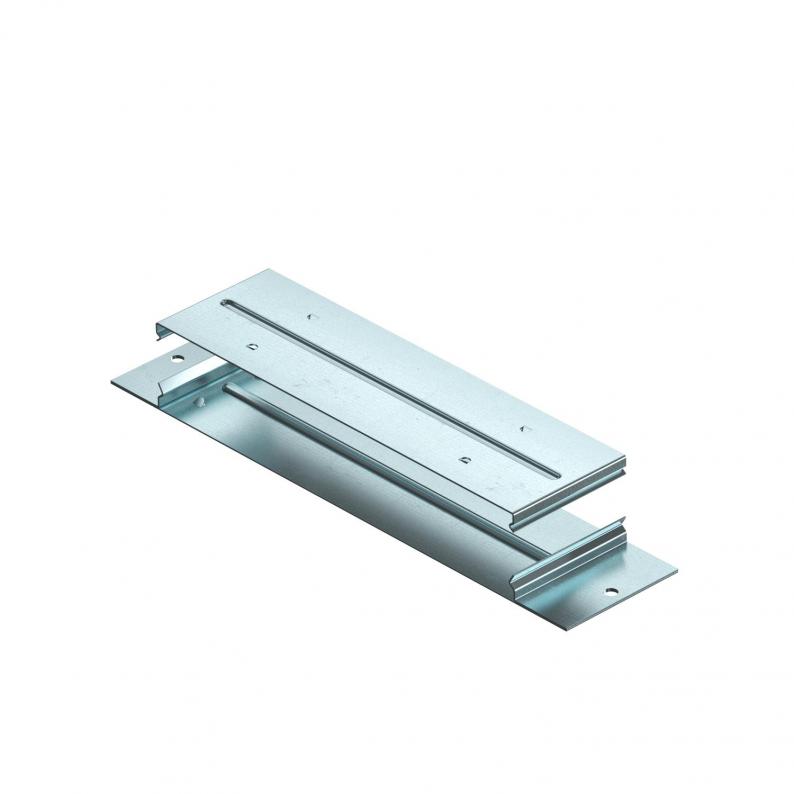

Connection shackle, conductive, for EÜK-2
Type VL 250-2 | Item no. 7400992 | EAN 4012197349912
Item no. / Type
Width
Trunking width, min.
Trunking height, max.
Duct height, min.
Smallest selling unit: 1 piece
1piece
Description
Connection shackle for mounting screed-covered underfloor installation ducts. The connection shackle snaps in to the duct sidewalls.
The electrical conductivity is ensured via the snap-in connection.
Technical data
Dimensions
| Length | 323 mm |
|---|---|
| Width | 75 mm |
| Dimension a | 250 mm |
Technical data
| Trunking width, min. | 250 mm |
|---|---|
| Seal installation option | no |
| Floor plate | yes |
| With equipotential bonding | yes |
| Removable cover | yes |
| Suitable for expansion joint | yes |
| Version for | Strap |
| Trunking height, max. | 58 mm |
| Duct height, min. | 28 mm |
| Dimension | 323x75x28,2 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0153 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (4)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Trunking width, min.
Trunking height, max.
Duct height, min.
Item no.
VL 190-2
75
190
48
28
7400988
VL 350-2
75
350
58
28
7400996
VL 250-2
75
250
58
28
7400992
Trunking width, min.
Trunking height, max.
VL 190-2
Item no.
7400988
Width
75
Trunking width, min.
190
Trunking height, max.
48
Duct height, min.
28
VL 350-2
Item no.
7400996
Width
75
Trunking width, min.
350
Trunking height, max.
58
Duct height, min.
28
VL 250-2
Item no.
7400992
Width
75
Trunking width, min.
250
Trunking height, max.
58
Duct height, min.
28
