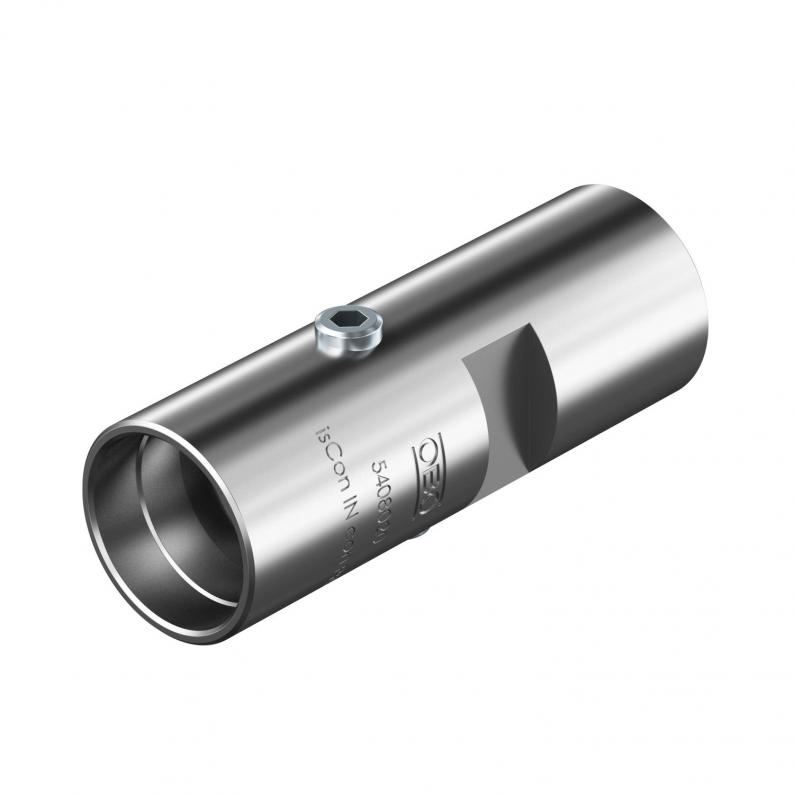

Connection element for installation in the insulated air-termination rod isFang IN
Type isCon IN con PRE | Item no. 5408020 | EAN 4012196591701
Item no. / Type
Lightning current carrying capacity
Dimension d min.
Fit
Smallest selling unit: 1 piece
1piece
Description
• For the isCon® Premium conductor
• Cable connection and routing in the insulated air-termination rod
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 200 kA (lightning protection class I)
• Cable connection and routing in the insulated air-termination rod
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 200 kA (lightning protection class I)
Technical data
Technical data
| Suitable for connection | Miscellaneous |
|---|---|
| Lightning current carrying capacity | H2/200 kA |
| Fit | 23 mm |
| Dimension | Ø23mm |
| Material | Stainless steel 1.4301 |
| Clamping range, max. | 23 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2122 kg CO2e / 1 Piece |

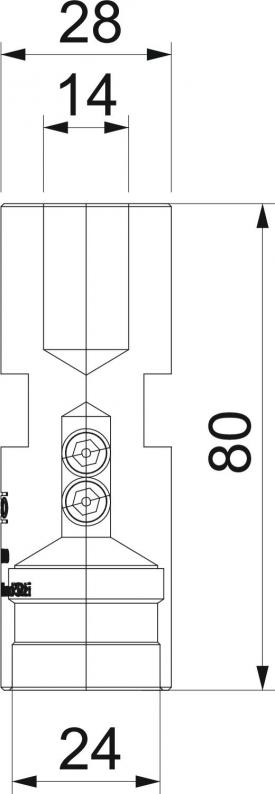

Dimensions
| Dimension d min. | 28 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 5408013
Stripping tool for isCon® conductorType
isCon stripper 2
Smallest selling unit: 1 piece
1piece
Variants
Type
Lightning current carrying capacity
Dimension d min.
Fit
Item no.
isCon IN con 2
H1/150
28
20
5408019
isCon IN con PRE
H2/200
28
23
5408020
Lightning current carrying capacity
Fit
isCon IN con 2
Item no.
5408019
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
20
isCon IN con PRE
Item no.
5408020
Lightning current carrying capacity
H2/200
Dimension d min.
28
Fit
23
