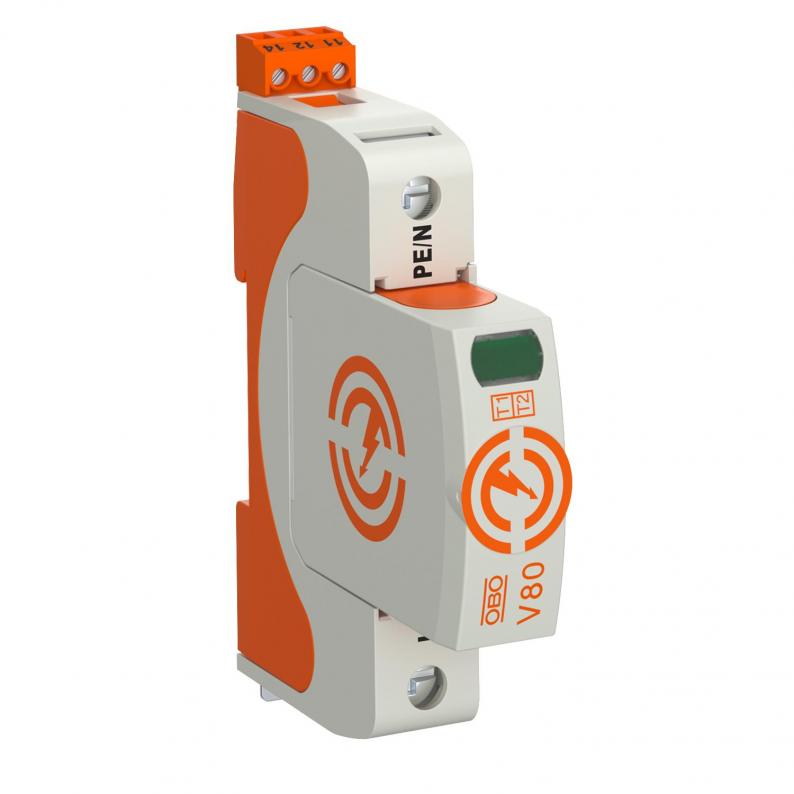

CombiController V80 remote signalling

Type V80-1+FS-280 | Item no. 5093802 | EAN 4012196498161

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Combination arrester, lightning current and surge arrester, type 1+2

• For lightning current equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Impulse current arresting capacity up to 80 kA (8/20)
• Modular, plug-in arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling

Application: Lighting current equipotential bonding for buildings of class III and IV.

* Complete = cover and base

Technical data

Pole number	1
Network form	TN
Blow-out	no
Signalling on device	Visual
Protection rating	IP20
Maximum continuous voltage (L-N)	280 V
Maximum continuous voltage (N-PE)	255 V
Nominal discharge current (8/20 µs) [L-N]	40 kA
Housing material surge protection components	PA UL 94 V-0
Maximum discharge current (8/20 μs) [L-N]	80 kA
Maximum discharge current (8/20 μs) [N-PE]	80 kA
Remote signalling	yes
Nominal voltage AC (50/60 Hz)	230 V
Integrated back-up fuse	no
Lightning surge current (10/350 μs)	12,5 kA
Protection level [L-N]	≤1,4
Maximum continuous voltage AC	280 V
Nominal discharge current (8/20 µs)	40 kA
Pole version	1
Installation type	DIN rail 35 mm
Max. mains-side overcurrent protection	160 A gL/gG
Residual voltage [L-N] @ 5 kA	0,8 kV
Switching power AC	230 V; 0,5 A
Switching power DC	230 V; 0,1 A / 75 V; 0,5 A
Short-circuit resistance for max. mains-side overcurrent protection	50 kA eff
Residual voltage [L-N] @ 1 kA	0,7 kV
TOV voltage [L-N] ‒ withstand mode ‒ 5 s	335 V
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.	440 V
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms	1200 V
SPD to UL 1449	Type 4
Minimum distance	1,5 mm
Approvals	ÖVE
Conductor cross-section, flexible (fine-wire), max.	2 AWG
DC network form	no
IT network form	no
TN network form	yes
TN-C network form	yes
TN-C-S network form	yes
TN-S network form	yes
TT network form	yes
Other network form	no
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Torque	4 Nm
SPD to IEC 61643-1	Class I+II
SPD to EN 61643-11	Type 1+2
Maximum discharge current (8/20 μs)	80 kA
Response time	<25 ns
Maximum back-up fuse	160 A
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Residual voltage [L-N] @ 12.5 kA	1 kV
Dimension	280V
CO2 Footprint (GWP) Cradle-to-Gate	0,3769 kg CO₂e / 1 Piece

Connectivity options

Conductor cross-section, flexible (fine-wire), max.	35 mm²
Conductor cross-section, flexible (fine-wire), min.	1,5 mm²
FM contacts	Changeover
Connection cross-section, FM terminals, max.	1,5 mm²
Connection cross-section, FM terminals, min.	0,5 mm²
Connection cross-section, FM terminals, max.	16 AWG
Connection cross-section, FM terminals, min.	21 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	2 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	16 AWG
