Clamp clip, single, plastic pressure trough, FT
Type 2056 22 FT | Item no. 1160222 | EAN 4012195064572
Item no. / Type
Max. Tightening torque
Clamping range D, max.
Clamping range D, min.
This item is a discontinued product!
You can find the successor product here.

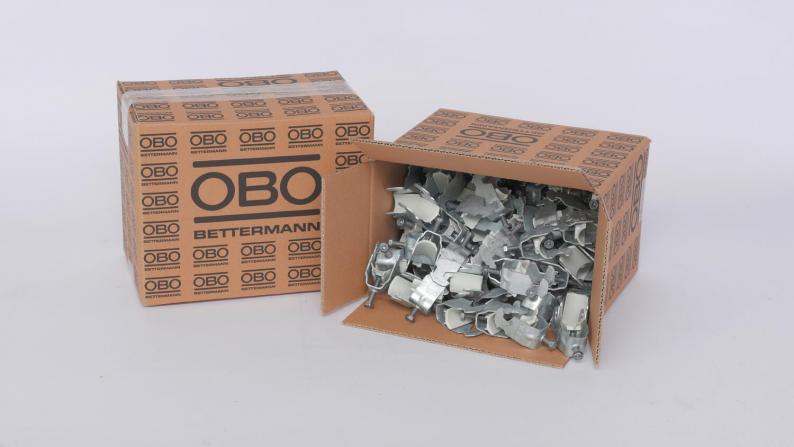

Smallest selling unit: 100 piece
100piece
Description
Suitable for all C profile rails with slot width 16–17 mm.
Hot-dip galvanised steel clip and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Hot-dip galvanised steel clip and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| for rail with slot width (with interval), max. | 17 mm |
|---|---|
| for rail with slot width (with interval), min. | 16 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| Clamping range D, max. | 22 mm |
| Clamping range D, min. | 16 mm |
| Dimension | 16-22mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0866 kg CO₂e / 1 Piece |
Dimensions
| Dimension L | 34 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 27 mm |
| Dimension H | 50 mm |
| Dimension t | 1,5 mm |
| Dimension C | 34 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M6 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, max.
Clamping range D, min.
Item no.
2056 12 FT
3
12
8
1160125
2056 16 FT
3
16
12
1160168
2056 22 FT
3
22
16
1160222
2056 28 FT
3
28
22
1160281
2056 34 FT
5
34
28
1160346
2056 40 FT
5
40
34
1160400
2056 46 FT
5
46
40
1160451
2056 52 FT
5
52
46
1160524
2056 58 FT
5
58
52
1160583
2056 64 FT
5
64
58
1160648
2056 70 FT
5
70
64
1160702
2056 76 FT
5
76
70
1160761
2056 82 FT
5
82
76
1160826
2056 90 FT
5
90
82
1160907
2056 100 FT
5
100
90
1160990
Max. Tightening torque
Clamping range D, max.
Clamping range D, min.
2056 12 FT
Item no.
1160125
Max. Tightening torque
3
Clamping range D, max.
12
Clamping range D, min.
8
2056 16 FT
Item no.
1160168
Max. Tightening torque
3
Clamping range D, max.
16
Clamping range D, min.
12
2056 22 FT
Item no.
1160222
Max. Tightening torque
3
Clamping range D, max.
22
Clamping range D, min.
16
2056 28 FT
Item no.
1160281
Max. Tightening torque
3
Clamping range D, max.
28
Clamping range D, min.
22
2056 34 FT
Item no.
1160346
Max. Tightening torque
5
Clamping range D, max.
34
Clamping range D, min.
28
2056 40 FT
Item no.
1160400
Max. Tightening torque
5
Clamping range D, max.
40
Clamping range D, min.
34
2056 46 FT
Item no.
1160451
Max. Tightening torque
5
Clamping range D, max.
46
Clamping range D, min.
40
2056 52 FT
Item no.
1160524
Max. Tightening torque
5
Clamping range D, max.
52
Clamping range D, min.
46
2056 58 FT
Item no.
1160583
Max. Tightening torque
5
Clamping range D, max.
58
Clamping range D, min.
52
2056 64 FT
Item no.
1160648
Max. Tightening torque
5
Clamping range D, max.
64
Clamping range D, min.
58
2056 70 FT
Item no.
1160702
Max. Tightening torque
5
Clamping range D, max.
70
Clamping range D, min.
64
2056 76 FT
Item no.
1160761
Max. Tightening torque
5
Clamping range D, max.
76
Clamping range D, min.
70
2056 82 FT
Item no.
1160826
Max. Tightening torque
5
Clamping range D, max.
82
Clamping range D, min.
76
2056 90 FT
Item no.
1160907
Max. Tightening torque
5
Clamping range D, max.
90
Clamping range D, min.
82
2056 100 FT
Item no.
1160990
Max. Tightening torque
5
Clamping range D, max.
100
Clamping range D, min.
90
