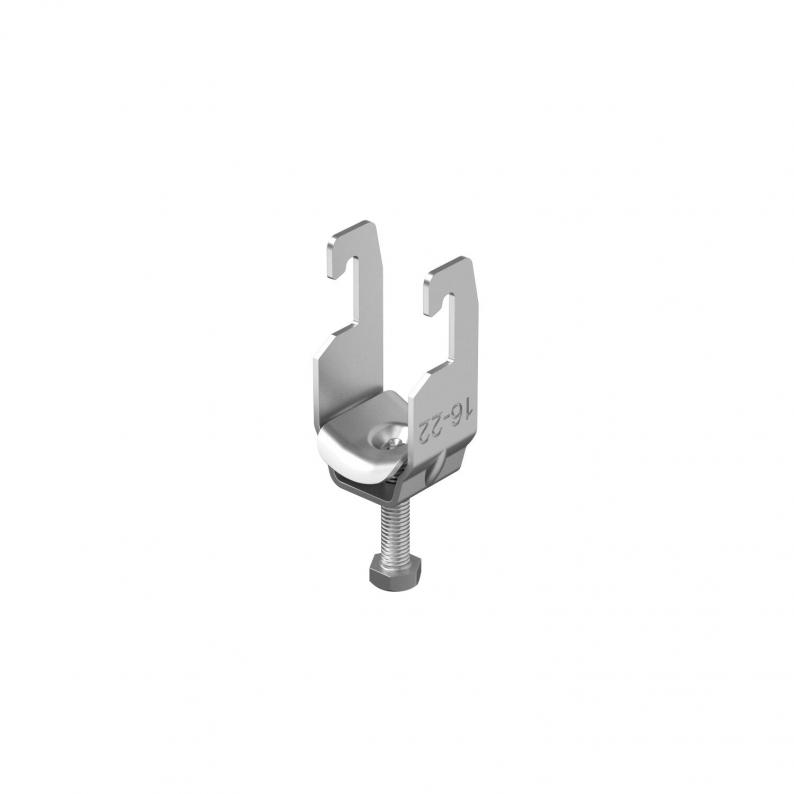

Clamp clip, single, A4 metal pressure trough
Type 2056U M 22 A4
|Item no. 1158215
|EAN 4012195912279
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for all C profile rails with slot width 18 mm and 22 mm.
Technical data
Technical data
| For pipe diameter, min. | 20 mm |
|---|---|
| For pipe diameter, max. | 20 mm |
| for rail with slot width (with interval), min. | 18 mm |
| for rail with slot width (with interval), max. | 22 mm |
| Impact-resistant | no |
| Halogen-free | no |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 1 |
| Surface addition | Untreated |
| Material addition | Rustproof steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| Clamping range D, min. | 16 mm |
| Clamping range D, max. | 22 mm |
| Dimension | 16-22mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| With counter-trough | no |
| Material of trough | Rustproof steel |
| Material quality of trough | Other |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,25 kg CO₂e / 1 Piece |
Dimensions
| Dimension L | 22 mm |
|---|---|
| Dimension B | 27 mm |
| Dimension H | 54,5 mm |
| Dimension t | 1,5 mm |
| Dimension C | 34 mm |
| Dimension G (mm) | M6 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056U M 12 A4
3
8
12
1158207
2056U M 16 A4
3
12
16
1158211
2056U M 22 A4
3
16
22
1158215
2056U M 28 A4
3
22
28
1158219
2056U M 34 A4
5
28
34
1158223
2056U M 40 A4
5
34
40
1158227
2056U M 46 A4
5
40
46
1158231
2056U M 52 A4
5
46
52
1158235
2056U M 58 A4
5
52
58
1158239
2056U M 64 A4
5
58
64
1158243
2056U M 70 A4
5
64
70
1158247
2056U M 76 A4
5
70
76
1158251
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056U M 12 A4
Item no.
1158207
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056U M 16 A4
Item no.
1158211
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056U M 22 A4
Item no.
1158215
Max. Tightening torque
3
Clamping range D, min.
16
Clamping range D, max.
22
2056U M 28 A4
Item no.
1158219
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
2056U M 34 A4
Item no.
1158223
Max. Tightening torque
5
Clamping range D, min.
28
Clamping range D, max.
34
2056U M 40 A4
Item no.
1158227
Max. Tightening torque
5
Clamping range D, min.
34
Clamping range D, max.
40
2056U M 46 A4
Item no.
1158231
Max. Tightening torque
5
Clamping range D, min.
40
Clamping range D, max.
46
2056U M 52 A4
Item no.
1158235
Max. Tightening torque
5
Clamping range D, min.
46
Clamping range D, max.
52
2056U M 58 A4
Item no.
1158239
Max. Tightening torque
5
Clamping range D, min.
52
Clamping range D, max.
58
2056U M 64 A4
Item no.
1158243
Max. Tightening torque
5
Clamping range D, min.
58
Clamping range D, max.
64
2056U M 70 A4
Item no.
1158247
Max. Tightening torque
5
Clamping range D, min.
64
Clamping range D, max.
70
2056U M 76 A4
Item no.
1158251
Max. Tightening torque
5
Clamping range D, min.
70
Clamping range D, max.
76
