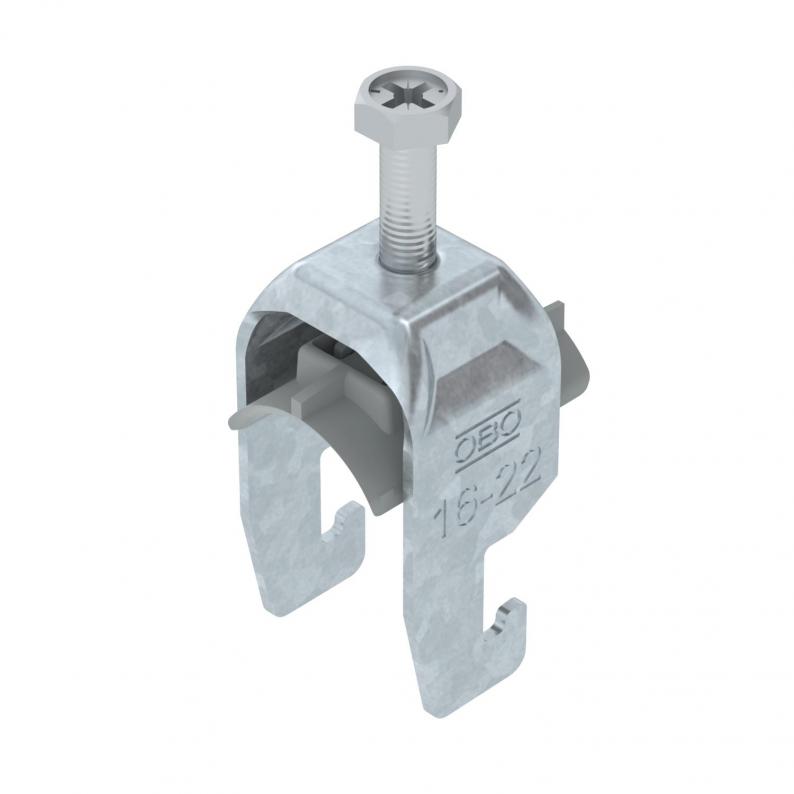

Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, FT

Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, FT

Type BS-U1-K-22 FT | Item no. 1186716 | EAN 4012196850839

Show all variants
Item no. / Type
Max. Tightening torque
Clamping range D, max.
Clamping range D, min.

Smallest selling unit: 100 piece

DescriptionTechnical dataDownloadsVariants

Description

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.


  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length22,5 mm
Width27 mm
Height51 mm
Dimension L35 mm
Dimension A22,5 mm
Dimension B27 mm
Dimension H51 mm
Dimension t1,5 mm
Dimension C34 mm
Dimension G (mm)M6

Technical data

Plate thickness1,5 mm
For pipe diameter, max.22 mm
For pipe diameter, min.16 mm
Slot width10 mm
for rail with slot width (with interval), max.22 mm
for rail with slot width (with interval), min.18 mm
Halogen-freeyes
ThreadM6
With plastic troughyes
Length of external dimensions34 mm
Number of cables/pipes1
Surface additionhot galvanised
Material additionSteel
Max. Tightening torque3 Nm
Mounting typeProfile rail
Clamping range D, max.22 mm
Clamping range D, min.16 mm
Dimension16-22mm
SurfaceHot-dip galvanised
MaterialSteel
With counter-troughno
Material of troughPlastic
Material quality of troughPolypropylene
CO2 Footprint (GWP) Cradle-to-Gate0,0917 kg CO₂e / 1 Piece
