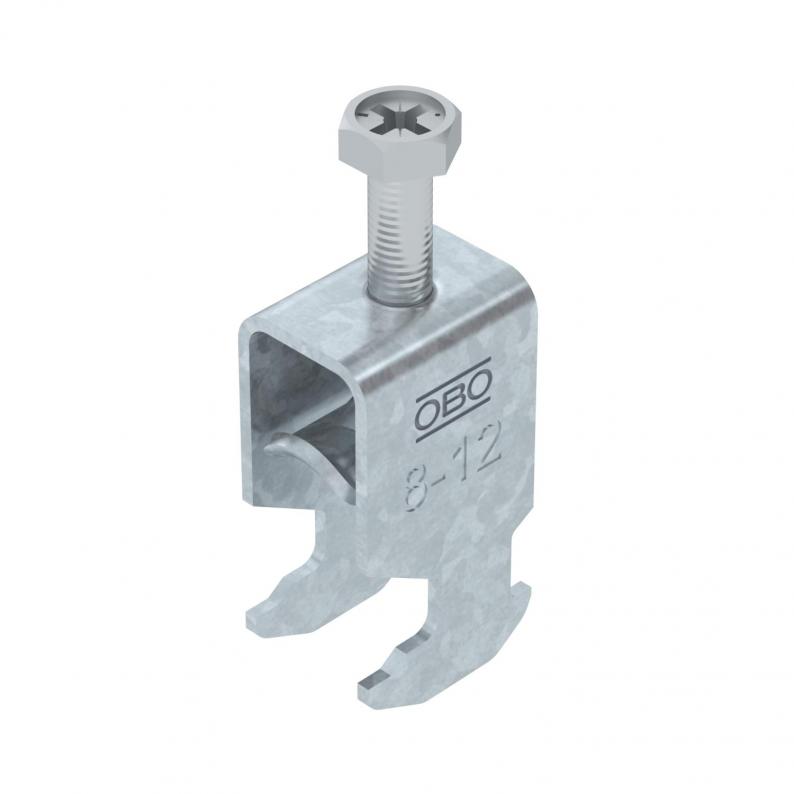

Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT

Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT

Type BS-H1-M-12 FT | Item no. 1186002 | EAN 4012196846900

Show all variants
Item no. / Type
Max. Tightening torque
Clamping range D, max.
Clamping range D, min.

Smallest selling unit: 100 piece

DescriptionTechnical dataDownloadsVariants

Description

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. The counter-sleeve must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length22,5 mm
Width17 mm
Height42 mm
Dimension L34 mm
Dimension A22,5 mm
Dimension B17 mm
Dimension H42 mm
Dimension t1,5 mm
Dimension C28 mm
Dimension G (mm)M6

Technical data

Maintain electrical functionsyes
Plate thickness1,5 mm
For pipe diameter, max.12 mm
For pipe diameter, min.8 mm
Slot width10 mm
for rail with slot width (with interval), max.17 mm
for rail with slot width (with interval), min.16 mm
Halogen-freeyes
ThreadM6
With plastic troughno
With metal troughyes
Length of external dimensions28 mm
Number of cables/pipes1
Surface additionhot galvanised
Material additionSteel
Max. Tightening torque3 Nm
Mounting typeProfile rail
Clamping range D, max.12 mm
Clamping range D, min.8 mm
Dimension08-12mm
SurfaceHot-dip galvanised
MaterialSteel
With counter-troughno
Material of troughSteel
CO2 Footprint (GWP) Cradle-to-Gate0,0877 kg CO₂e / 1 Piece
