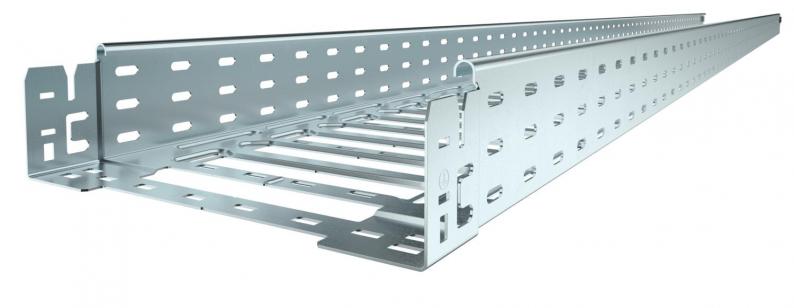

Cable tray SKS-Magic® 85 FS
Type SKSM 810 FS | Item no. 6059530 | EAN 4012195832966
Item no. / Type
Length
Width
Height
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 3 m
3m
Description
Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.
From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.
From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
Continuous equipotential bonding is guaranteed without additional components.
Technical data
Dimensions
| Length | 3050 mm |
|---|---|
| Width | 100 mm |
| Height | 85 mm |
| Dimension y | 62 mm |
| Dimension L | 30 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 83 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 8300 mm² |
| With cover | no |
| Dimension | 85x100x3050 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,9441 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 2,7 kN/m |
|---|---|
| Support spacing 2.5 m | 2,07 kN/m |
| Support spacing 3.0 m | 1,5 kN/m |
| Support spacing 1.5 m | 3,4 kN/m |
| NEMA load class | 8C |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Variants
Type
Length
Width
Height
Maintain electrical functions
Plate thickness
Surface
Material
Colour
Item no.
SKSM 810 FS
3050
100
85
no
1,5
Strip galvanized
Steel
zinc
6059530
SKSM 820 FS
3050
200
85
no
1,5
Strip galvanized
Steel
zinc
6059534
SKSM 830 FS
3050
300
85
no
1,5
Strip galvanized
Steel
zinc
6059536
SKSM 840 FS
3050
400
85
no
1,5
Strip galvanized
Steel
zinc
6059538
SKSM 850 FS
3050
500
85
no
1,5
Strip galvanized
Steel
zinc
6059540
SKSM 860 FS
3050
600
85
no
1,5
Strip galvanized
Steel
zinc
6059542
