Cable tray SKS-Magic® 110, unperforated FS

Cable tray SKS-Magic® 110, unperforated FS

Type SKSMU 110 FS | Item no. 6059836 | EAN 4012195833925

Show all variants
Item no. / Type
Length
Width
Height
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Colour
zinc

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

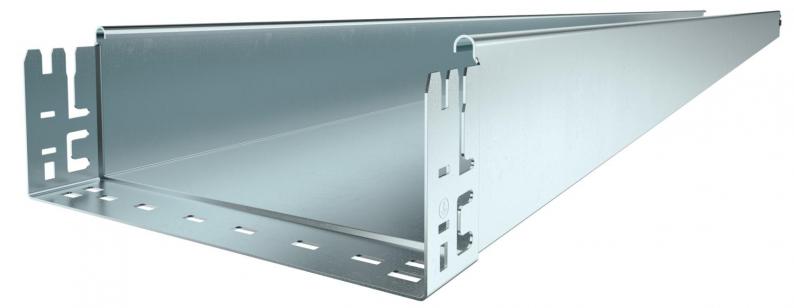

Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Continuous equipotential bonding is guaranteed without additional components.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

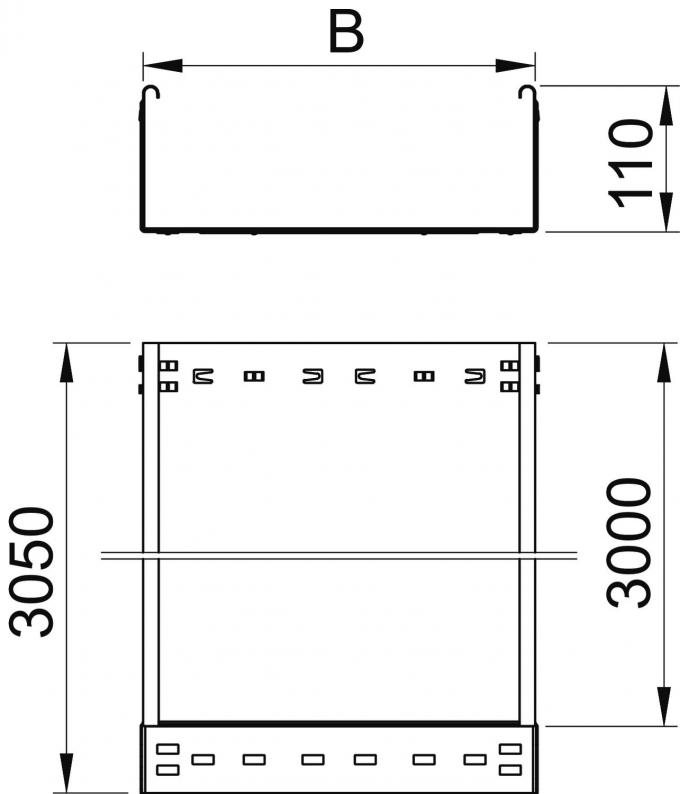

Dimensions

Length3050 mm
Width100 mm
Height110 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section108 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseno
NATO hole patternno
Usable cross-section10800 mm²
With coverno
Dimension110x100x3050
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate9,3069 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m2,4 kN/m
Support spacing 2.5 m1,76 kN/m
Support spacing 3.0 m1,2 kN/m
Support spacing 3.5 m0,84 kN/m
Support spacing 4.0 m0,8 kN/m
Support spacing 1.5 m3 kN/m
Load diagram, cable tray, type SKSMU 110

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width
