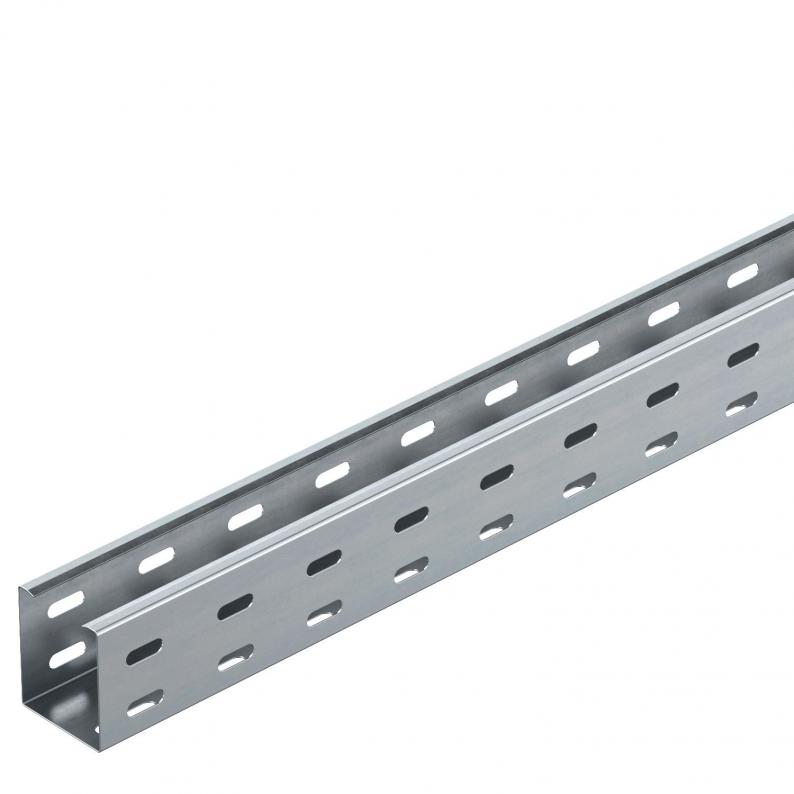

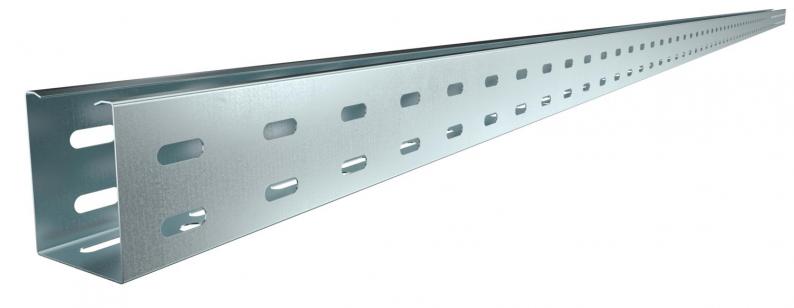

Cable tray RKS 60 FS perforated

Cable tray RKS 60 FS perforated

Type RKS 605 FS | Item no. 6047600 | EAN 4012196662159

Show all variants
Item no. / Type
6047600 / RKS 605 FS
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsVariants

Description

RKS 60 = Rational cable tray system with 60 mm side height (unbeaded base plate).
Matching cover with turn buckle: Type AZDMD 50

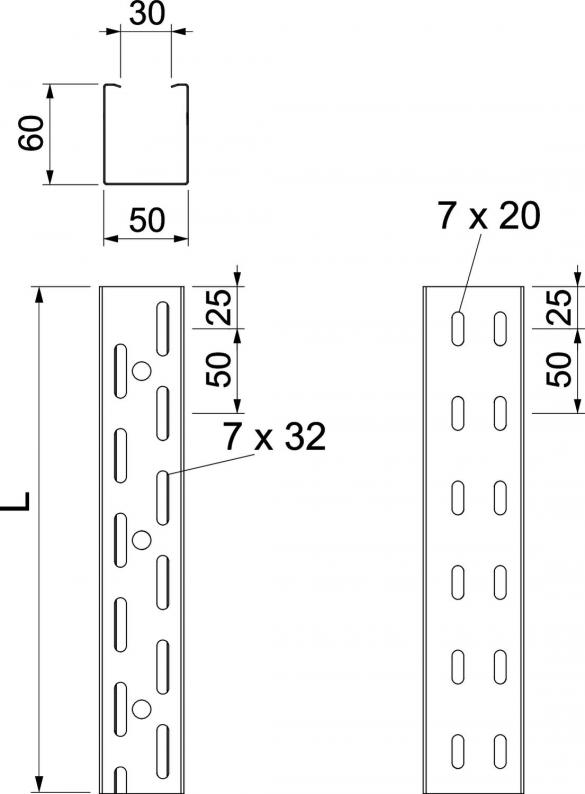

Cable tray with continuous bottom and side perforation as well as central holes (Ø11 mm) in the base for additional fastenings.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width50 mm
Height60 mm
Dimension L3000 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section30 cm²
Rustproof steel, pickledno
Plate thickness0,75 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section3000 mm²
With coverno
Dimension60x50
Base perforation7 x 32
Dimension60x50x3000
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate2,3375 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,5 kN/m
Support spacing 2.5 m0,35 kN/m
Support spacing 1.0 m2 kN/m
Support spacing 3.0 m0,15 kN/m
Support spacing 1.5 m0,8 kN/m
Load diagram, cable tray, type RKS 60, unbeaded

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width
