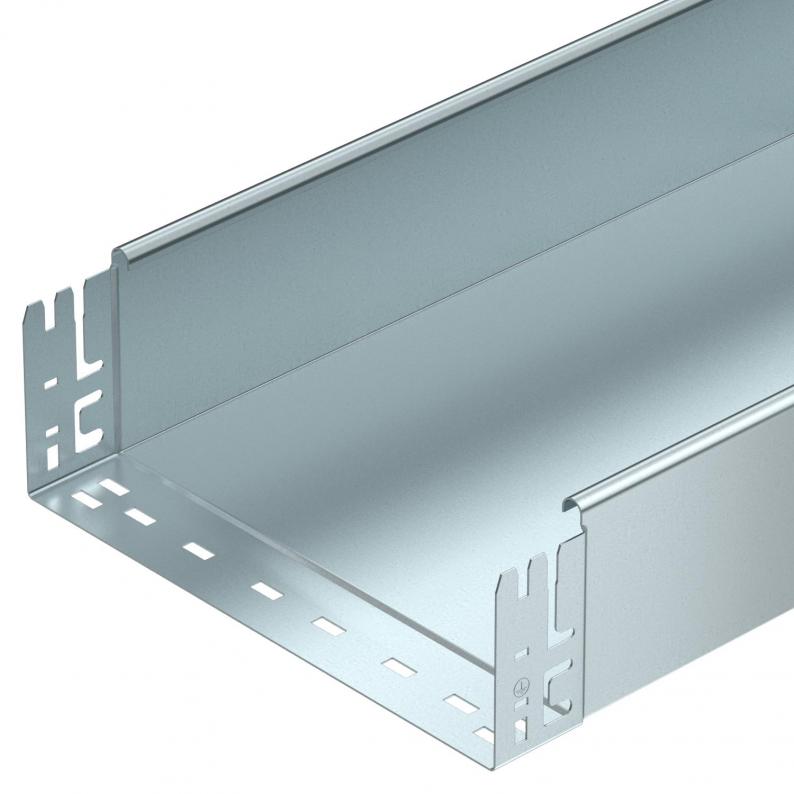

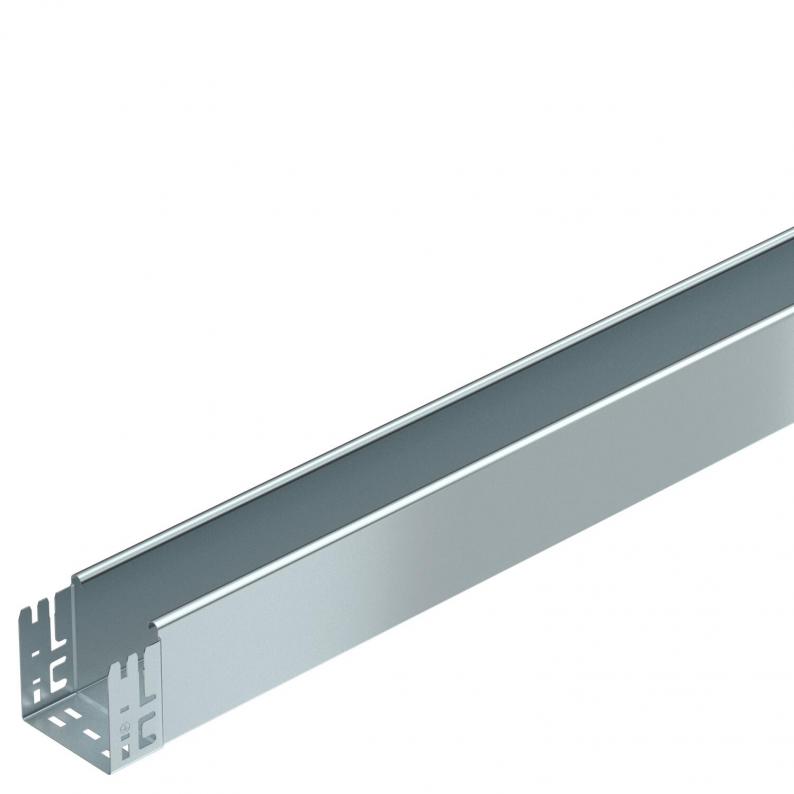

Cable tray MKS-Magic® 110, unperforated FS
Type MKSMU 110 FS | Item no. 6059382 | EAN 4012195832003
Item no. / Type
Length
Width
Height
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 3 m
3m
Description
Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
Continuous equipotential bonding is guaranteed without additional components.
Technical data
Dimensions
| Length | 3050 mm |
|---|---|
| Width | 100 mm |
| Height | 110 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 108 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Usable cross-section | 10800 mm² |
| With cover | no |
| Dimension | 110x100x3050 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Usable length | 3000 mm |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,2071 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 1,3 kN/m |
|---|---|
| Support spacing 2.5 m | 0,75 kN/m |
| Support spacing 3.0 m | 0,6 kN/m |
| Support spacing 1.5 m | 1,85 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Variants
Type
Length
Width
Height
Maintain electrical functions
Plate thickness
Surface
Material
Colour
Item no.
MKSMU 110 FS
3050
100
110
no
1
Strip galvanized
Steel
zinc
6059382
MKSMU 115 FS
3050
150
110
no
1
Strip galvanized
Steel
zinc
6059384
MKSMU 120 FS
3050
200
110
no
1
Strip galvanized
Steel
zinc
6059386
MKSMU 130 FS
3050
300
110
no
1
Strip galvanized
Steel
zinc
6059388
MKSMU 140 FS
3050
400
110
no
1
Strip galvanized
Steel
zinc
6059390
MKSMU 150 FS
3050
500
110
no
1
Strip galvanized
Steel
zinc
6059392
MKSMU 160 FS
3050
600
110
no
1
Strip galvanized
Steel
zinc
6059394
