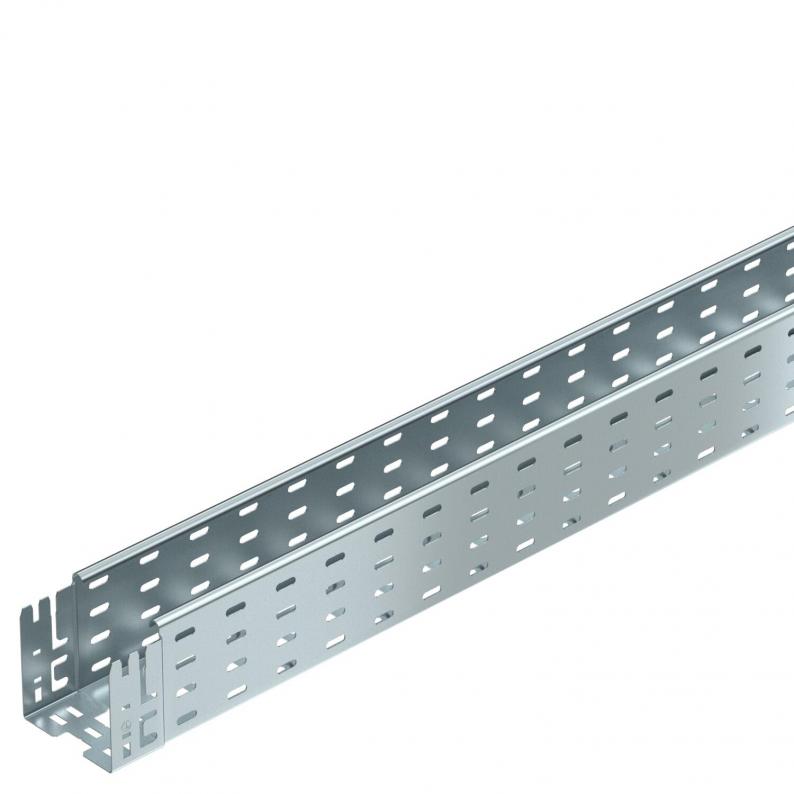

Cable tray MKS-Magic® 110 FS

Cable tray MKS-Magic® 110 FS

Type MKSM 110 FS | Item no. 6059156 | EAN 4012195830627

Show all variants
Item no. / Type
Length
Width
Height
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Colour
zinc

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.

From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Continuous equipotential bonding is guaranteed without additional components.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3050 mm
Width100 mm
Height110 mm
Dimension y62 mm
Dimension L30 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section108 cm²
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section10800 mm²
With coverno
Dimension110x100x3050
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate6,1983 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1,5 kN/m
Support spacing 2.5 m1,07 kN/m
Support spacing 3.0 m0,7 kN/m
Support spacing 1.5 m2 kN/m
NEMA load class8A
Load diagram, cable tray, type MKSM 110

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories

Item no. 7027351

Cross-over 110 FS
Type
RK 110 FS

Smallest selling unit: 1 piece

Type
DRL 100 FS

Smallest selling unit: 3 m

Variants

Width
MKSM 110 FS
Item no.
6059156
Length
3050
Width
100
Height
110
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanized
Material
Steel
Colour
zinc
MKSM 115 FS
Item no.
6059158
Length
3050
Width
150
Height
110
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanized
Material
Steel
Colour
zinc
MKSM 120 FS
Item no.
6059160
Length
3050
Width
200
Height
110
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanized
Material
Steel
Colour
zinc

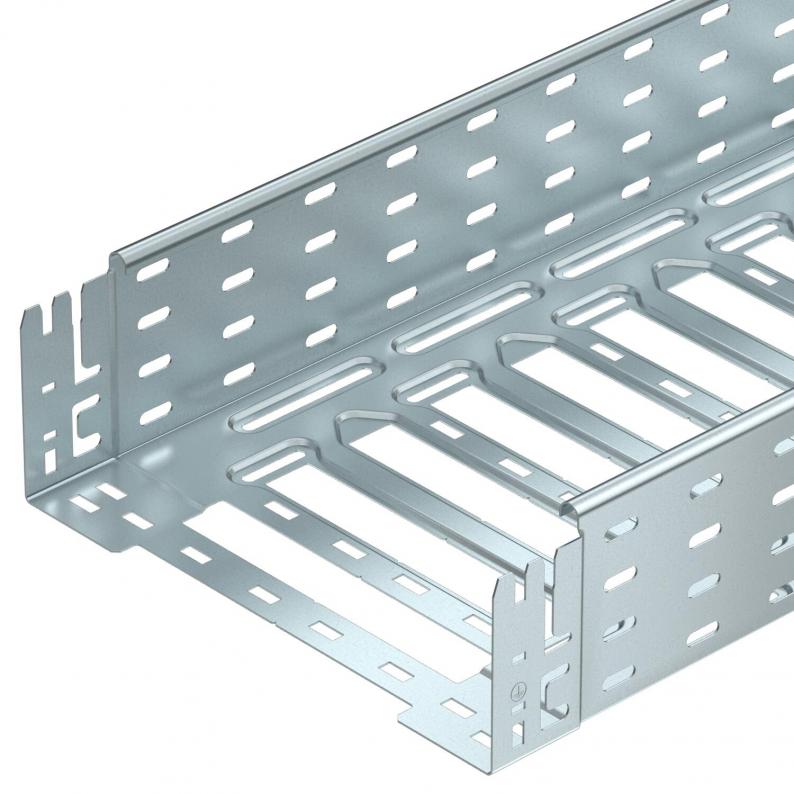

MKSM 130 FS
Item no.
6059162
Length
3050
Width
300
Height
110
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanized
Material
Steel
Colour
zinc
MKSM 140 FS
Item no.
6059164
Length
3050
Width
400
Height
110
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanized
Material
Steel
Colour
zinc
MKSM 150 FS
Item no.
6059166
Length
3050
Width
500
Height
110
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanized
Material
Steel
Colour
zinc
MKSM 160 FS
Item no.
6059168
Length
3050
Width
600
Height
110
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanized
Material
Steel
Colour
zinc
