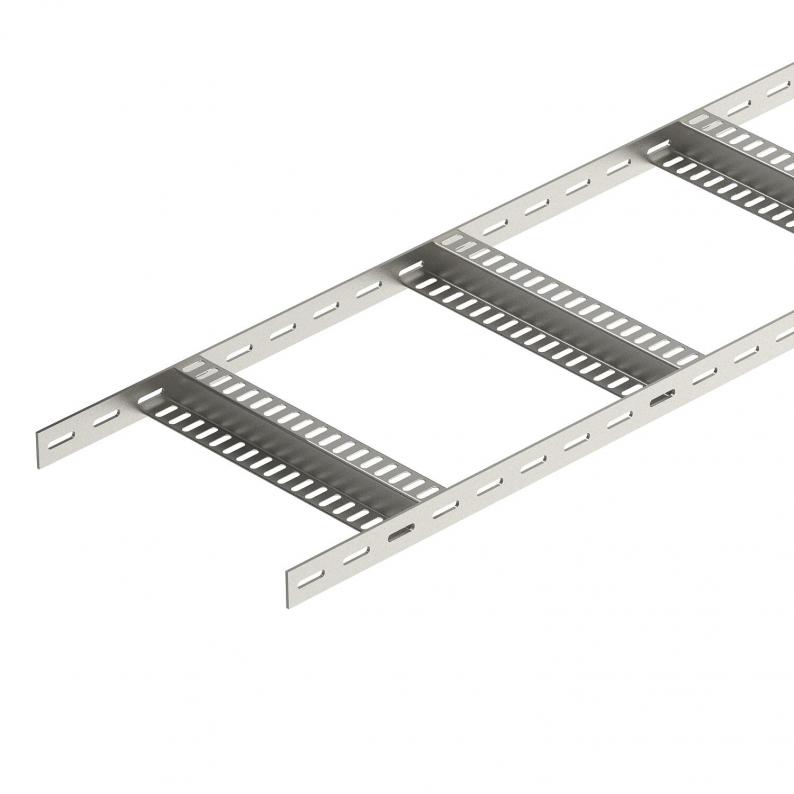

Cable ladder with Z rung, light-duty A4
Type SLZ L 100 A4 | Item no. 7098082 | EAN 4012195707943
Item no. / Type
Length
Width
Rail thickness
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
Description
Light-duty shipbuilding cable ladder with perforated side rail of side height 35 mm with welded, perforated Z rungs. Load tested according to IEC in conjunction with connector, type SLV.
Bends on request.
Technical data

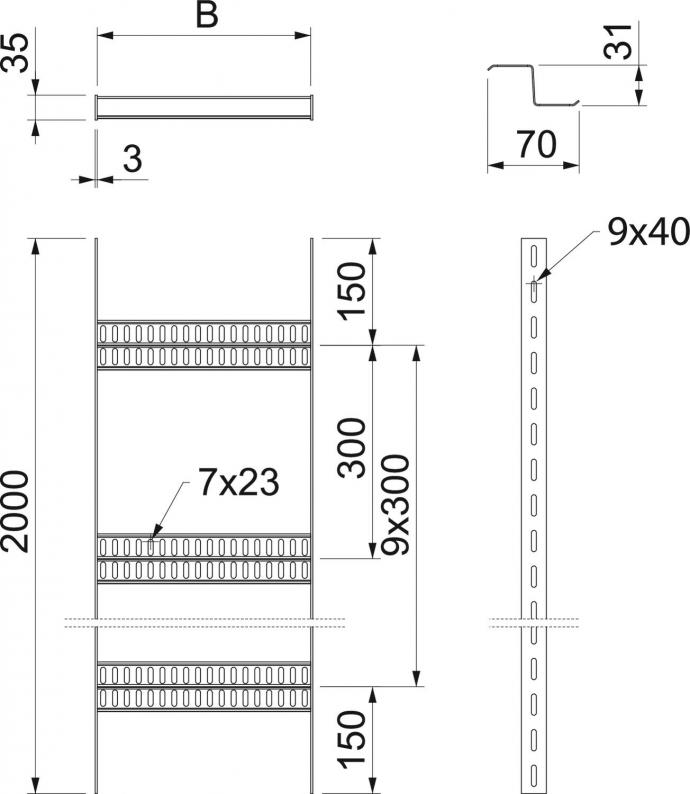

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 35 mm |
| Dimension B | 106 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Wide-span version | no |
| Rustproof steel, pickled | yes |
| Rung distance | 300 mm |
| Version of the rungs | Profile perforated |
| Side rail version | Flat profile |
| Fastening of rung | Welded |
| Dimension | 35x100 |
| Rail thickness | 3 mm |
| Dimension | 35x106x3000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 9,342 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 0,55 kN/m |
|---|---|
| Support spacing 2.5 m | 0,35 kN/m |
| Support spacing 1.0 m | 2,8 kN/m |
| Support spacing 3.0 m | 0,25 kN/m |
| Support spacing 1.5 m | 1 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Load scheme during testing
