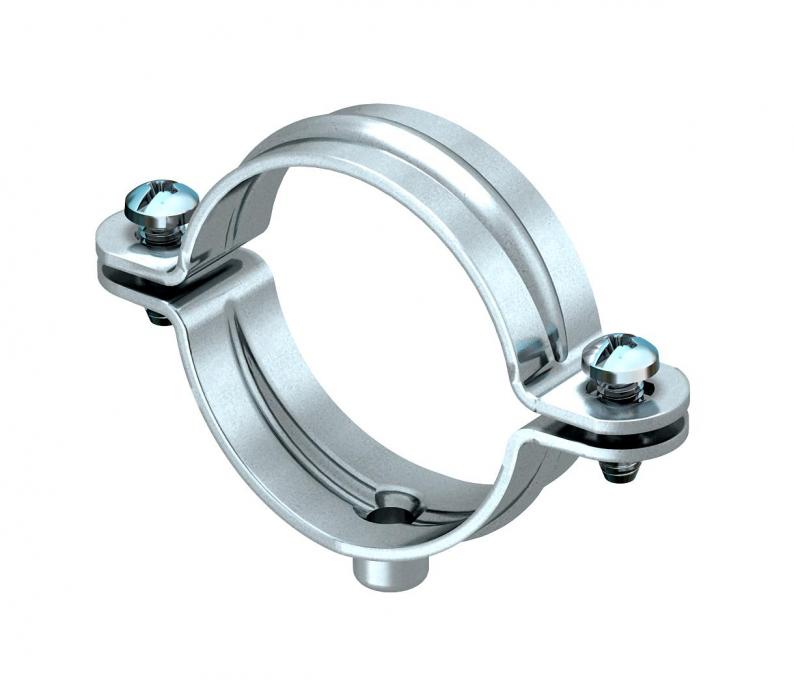

Cable and pipe spacer clip 732 with threaded connection
Type 732 6 GTP | Item no. 1360051 | EAN 4012195114499
Item no. / Type
Material thickness
Hole size
Clamping range D, max.
Clamping range D, min.
Surface
Electrogalvanized, transparently passivated
Material
Steel
This item is a discontinued product!
Smallest selling unit: 100 piece
100piece
Description
Mounting with screw-in spacer clips. Spacer clips and screw-in spacer clips are available in various materials: in V2A stainless steel, in electrogalvanised, hot-dip galvanised steel or in aluminium. Fastening can take place with bolt ties or angler anchors and Sprint screws.
Depending on the design, the clips can be "shot" using a bolt-firing tool or nail device.
Depending on the design, the clips can be "shot" using a bolt-firing tool or nail device.
Technical data

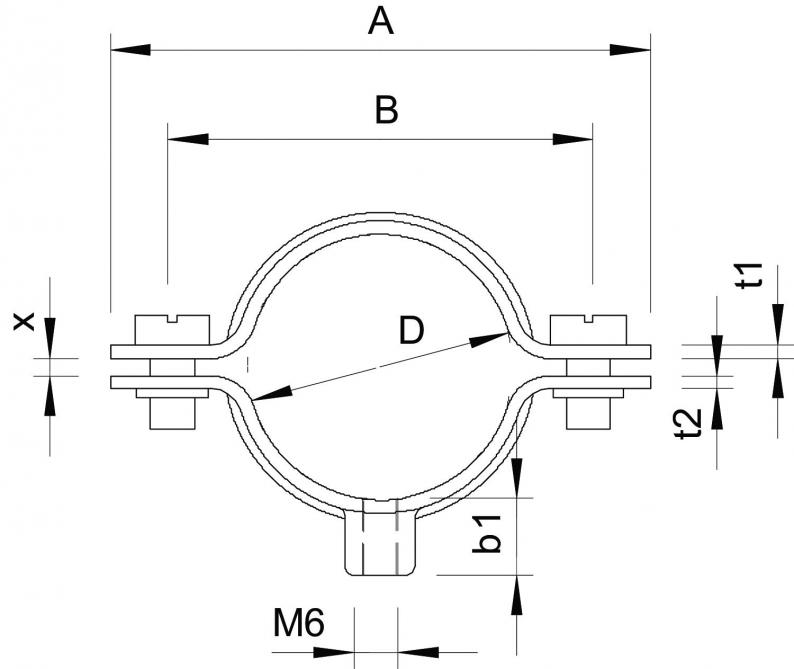

Dimensions
| Length | 35 mm |
|---|---|
| Dimension A | 35 mm |
| Dimension B | 23 mm |
| Dimension b1 | 8 mm |
| Dimension x | 1 mm |
| Dimension t1 (mm) | 1 |
| Dimension t2 (mm) | 1,25 |
Technical data
| Material thickness | 1 mm |
|---|---|
| For diameter | 5-6 |
| Hole size | M6 mm |
| Halogen-free | yes |
| Size | - |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | yes |
| Number of cables/pipes | 1 |
| Bolt | M5 x 10 |
| Distance to the wall | yes |
| Version for | Closed |
| Fastening type | Threaded connection |
| Clamping range D, max. | 6 mm |
| Clamping range D, min. | 5 mm |
| Dimension | 5-6mm |
| Surface | Electrogalvanized, transparently passivated |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0375 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Material thickness
Hole size
Clamping range D, max.
Clamping range D, min.
Surface
Material
Item no.
732 6 GTP
1
M6
6
5
Electrogalvanized, transparently passivated
Steel
1360051
732 8 GTP
1
M6
8
7
Electrogalvanized, transparently passivated
Steel
1360086
732 15 GTP
1
M6
15
13,5
Electrogalvanized, transparently passivated
Steel
1360159
732 18 GTP
1
M6
18
16,5
Electrogalvanized, transparently passivated
Steel
1360183
732 24 GTP
1
M6
24
22
Electrogalvanized, transparently passivated
Steel
1360248
732 38 GTP
1,5
M6
38
36
Electrogalvanized, transparently passivated
Steel
1360388
732 42 GTP
1,5
M6
42
40
Electrogalvanized, transparently passivated
Steel
1360426
732 60 GTP
1,5
M6
60
58
Electrogalvanized, transparently passivated
Steel
1360604
732 63 GTP
1,5
M6
63
61
Electrogalvanized, transparently passivated
Steel
1360639
