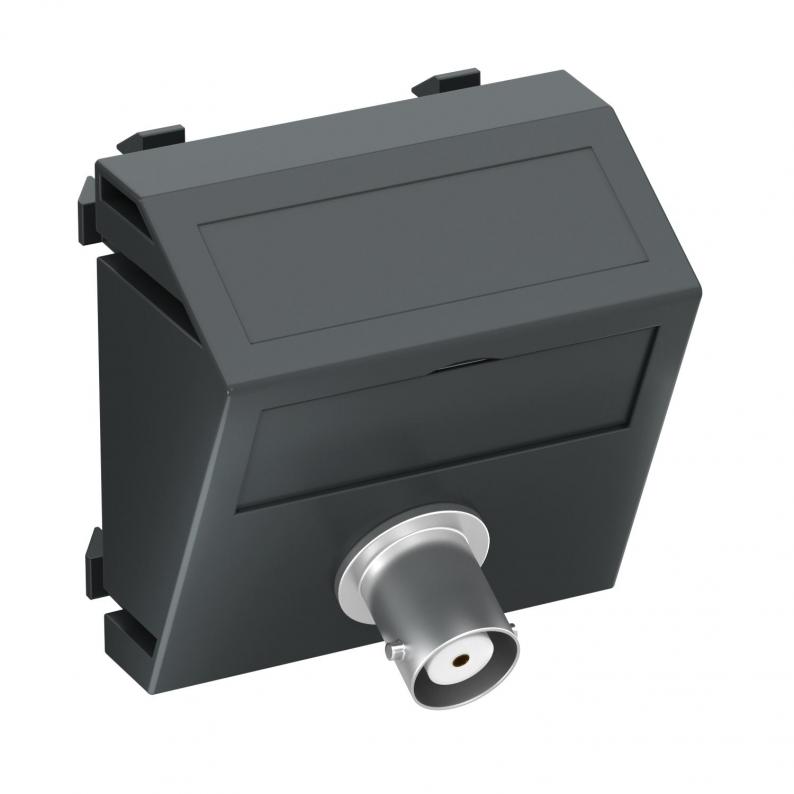

BNC connection, 1 module, slanting outlet, as 1:1 coupling, black-grey
Type MTS-BC F SWGR1 | Item no. 6105033 | EAN 4012195900412
Item no. / Type
6105033 / MTS-BC F SWGR1
Use
BNC/TNC
Colour
Black-grey; RAL 7021
Outlet direction
Sloping
Smallest selling unit: 1 piece
1piece
Description
Multimedia support with one BNC connection socket, slanting cable outlet, with labelling panel, BNC cinch coupling, socket-socket version. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Technical data

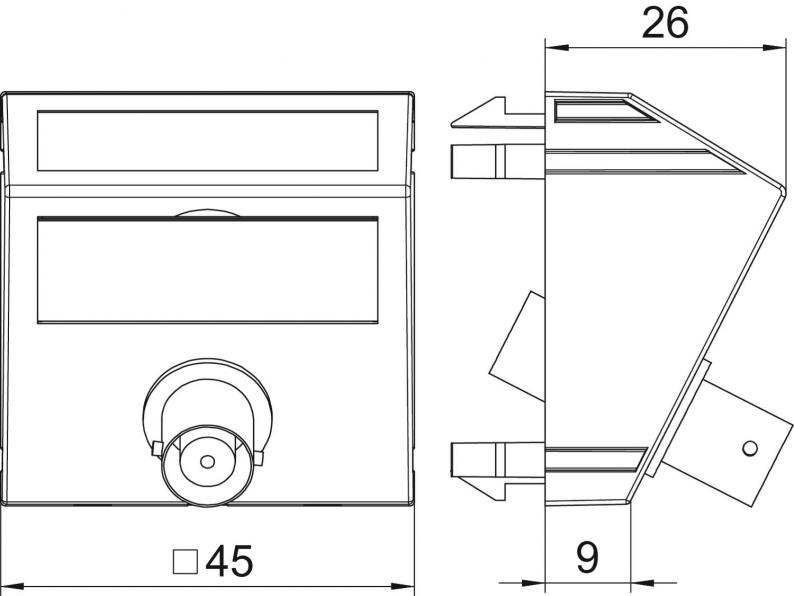

Dimensions
| Width | 45 mm |
|---|---|
| Height | 45 mm |
Technical data
| Hinged cover | no |
|---|---|
| Halogen-free | yes |
| Number of units | 1 |
| Strain relief option | no |
| Protection rating | IP20 |
| Support ring | no |
| With dust protection | no |
| With printed label | no |
| Lamp-wire connector | no |
| Depth | 26 mm |
| Surface version | Matt |
| Transparent | no |
| Combination | Basic element with central cover plate |
| Use | BNC/TNC |
| Fastening type | Lock |
| Dimension | 45x45mm |
| Material | Polycarbonate |
| Colour | Black-grey; RAL 7021 |
| Outlet direction | Sloping |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1649 kg CO2e / 1 Piece |
