Blanking cover for service outlets and cassettes
Type LPA UT3
|Item no. 7407588
|EAN 4012195112457
Item no. / Type
7407588 / LPA UT3
Smallest selling unit: 1 piece
1piece
piece
Description
To close an unused installation slot for a universal support in a service outlet or a cassette.
Technical data

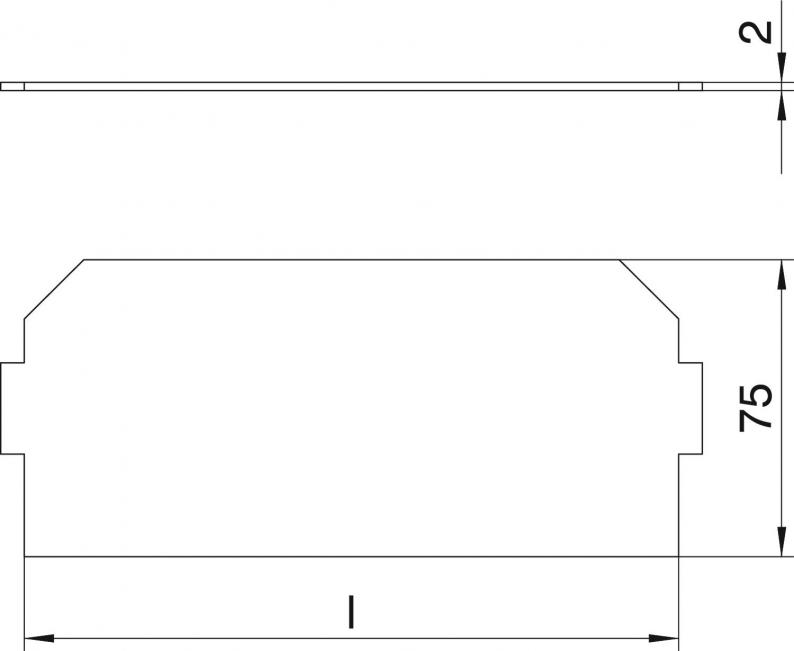

Dimensions
| Length | 165 mm |
|---|---|
| Width | 75 mm |
| Height | 2 mm |
Technical data
| Labelling panel | no |
|---|---|
| Strain relief option | yes |
| Application | Mounting box |
| Suitable for screed-flush closed underfloor ducts | yes |
| Number of installable devices | 0 |
| Seal installation option | no |
| Blanking lid | yes |
| Installation technology | Miscellaneous |
| Number of single openings | 0 |
| Number of double openings | 0 |
| Number of triple openings | 0 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 0 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Fastening type | Lockable |
| Dimension | 165x76mm |
| Material | Polyvinylchloride |
| Colour | Graphite black; RAL 9011 |
Environmental Data
0,1329 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1329 kg CO2e / 1 Piece |
|---|
