Beam clamp SSP 20-40, FT M8
Type SSP 20-40 M8 FT | Item no. 1486288 | EAN 4012196342204
Item no. / Type
1486288 / SSP 20-40 M8 FT
Smallest selling unit: 25 piece
25piece
Description

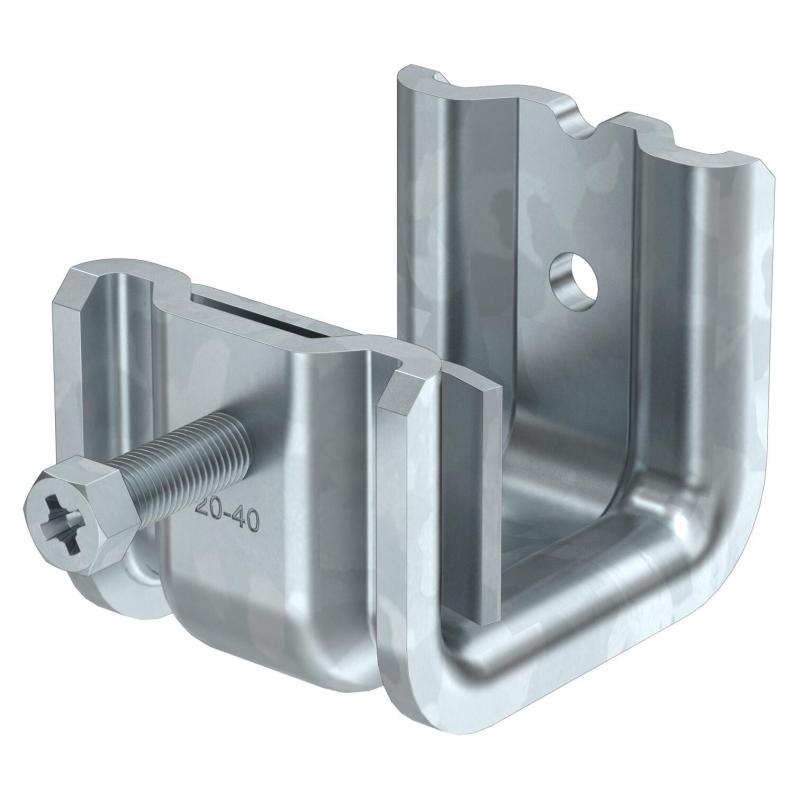

This type of support clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8).The hexagonal bolt has a WAF of 10 mm. In the clip element also two more M8 threads are introduced, for example to attach threaded rods.
Technical data

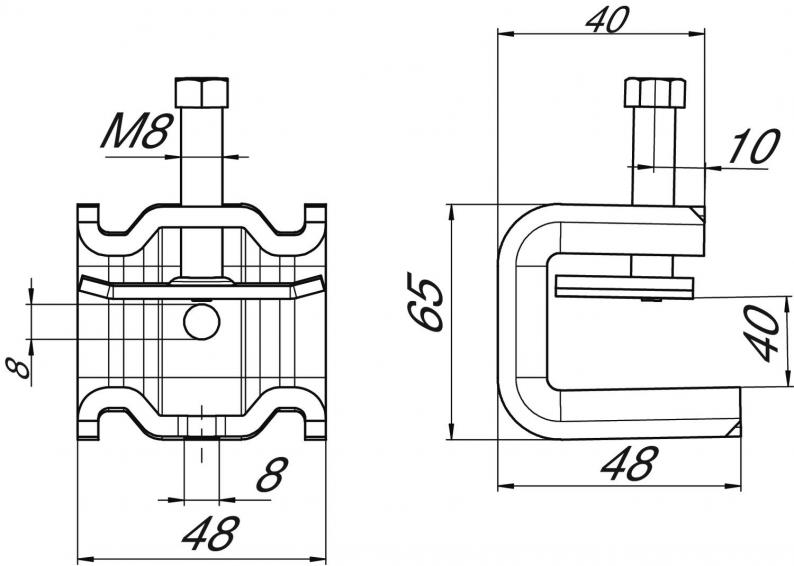

Dimensions
| Dimension L | 47 mm |
|---|---|
| Dimension B | 48 mm |
| Dimension H | 65 mm |
Technical data
| Thread metric | 8 |
|---|---|
| Thread | M8 |
| Hinged | no |
| Hinge, adjustable | no |
| Suitable for metric threaded rod | 8 |
| Breaking load F1 | 1,4 kN |
| Breaking load F2 | 1,3 kN |
| Fastening type | Clamp |
| Connection type/component | Thread |
| Flange thickness F max. | 40 mm |
| Flange thickness F min. | 20 mm |
| Dimension | 20-40mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5584 kg CO₂e / 1 Piece |
