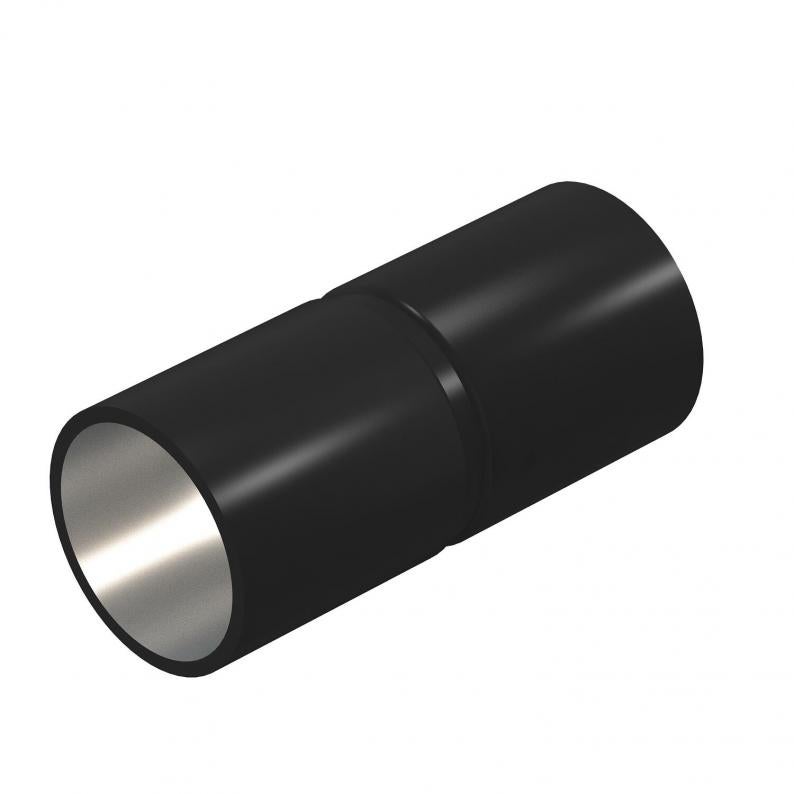

Armoured steel pipe connection sleeve without thread, black

Armoured steel pipe connection sleeve without thread, black

Type SV32W SW
|
Item no. 2046585
|
EAN 4012195781806
Show all variants
Item no. / Type

Smallest selling unit: 50 piece

piece

Description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

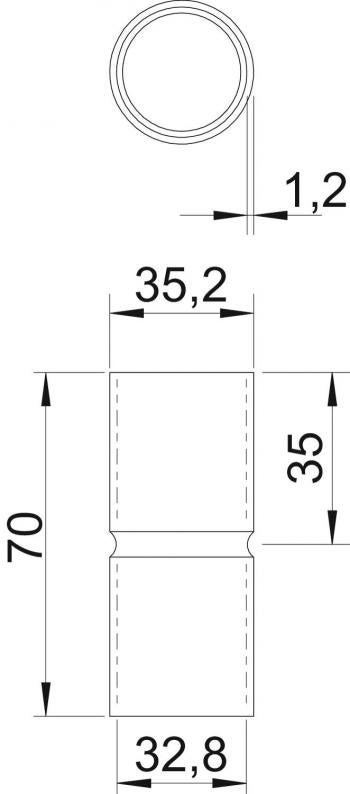

Dimensions

Length70 mm
Dimension L70 mm
Dimension d32,8 mm
Dimension t1,2 mm
Dimension m (mm)M32
Dimension l35 mm
Dimension D35,2 mm

Technical data

Halogen-freeyes
Size32
Polished surfaceno
Brushed surfaceno
for pipe diameter32 mm
With inspection opening and lidno
Two-partno
Version forConnector
Permitted temperature range, min.-45 °C
Permitted temperature range, max.400 °C
DimensionØ32mm
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005

Environmental Data

0,1907 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,1907 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1907 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
