90° vertical bend, rising, 60 FT

90° vertical bend, rising, 60 FT

Type RBV 615 S FT | Item no. 7007010 | EAN 4012195811015

Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

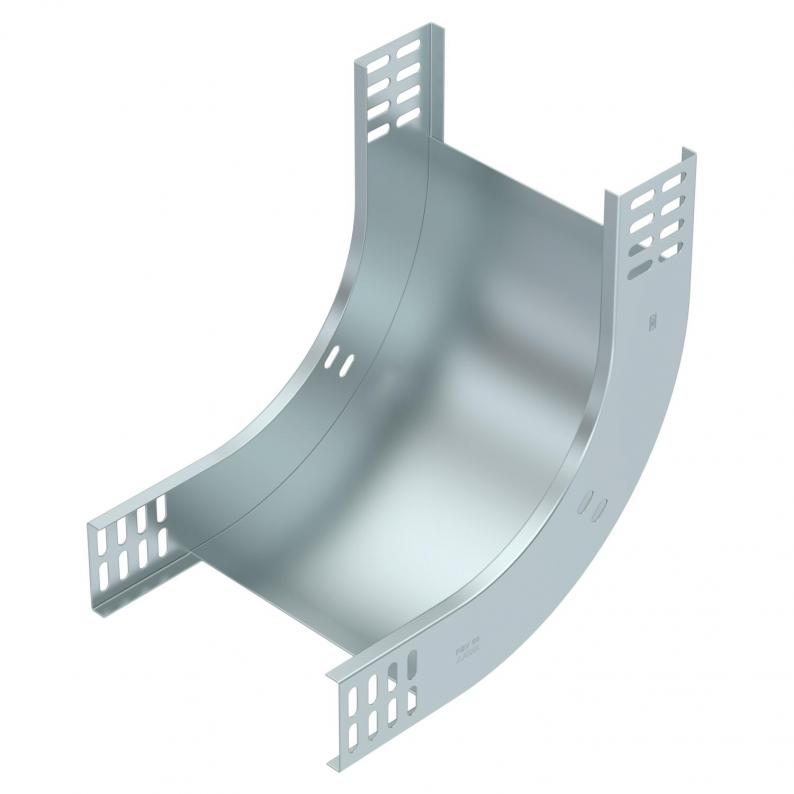

90° rising vertical bend, for all cable tray types of 60 mm side height.

The vertical bend is pushed over the end of the cable tray and screwed tight.

Fastening materials should be ordered separately.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

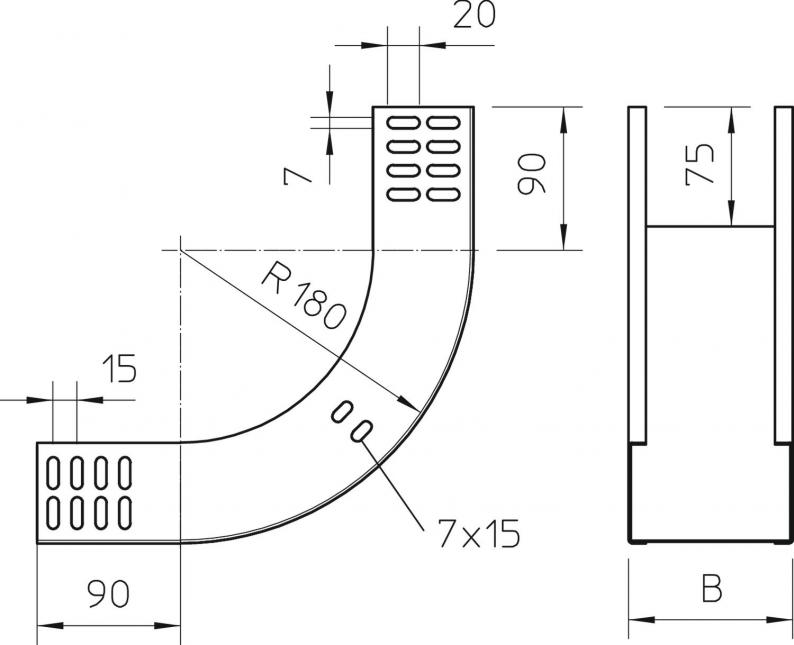

Dimensions

Width150 mm
Height60 mm
Dimension B150 mm

Technical data

Maintain electrical functionsyes
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionVertical rising
Dimension60x150
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate2,5168 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Variants

Width
RBV 610 S FT
Item no.
7007006
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBV 615 S FT
Item no.
7007010
Width
150
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBV 620 S FT
Item no.
7007014
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBV 640 S FT
Item no.
7007022
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBV 650 S FT
Item no.
7007026
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBV 660 S FT
Item no.
7007030
Width
600
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
