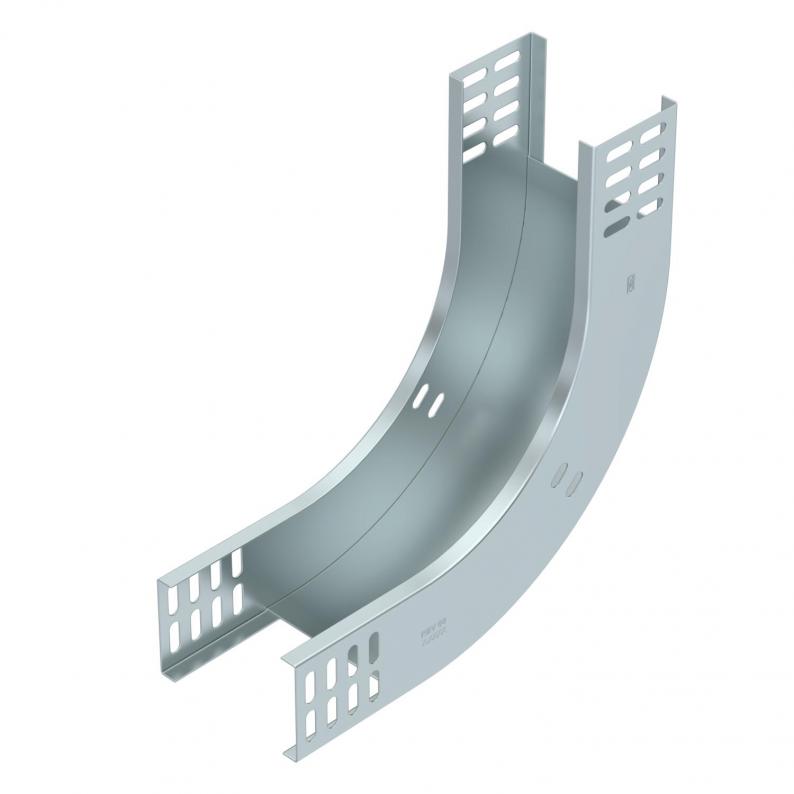

90° vertical bend, rising 60 FS

90° vertical bend, rising 60 FS

Type RBV 610 S FS | Item no. 7007005 | EAN 4012195047322

Show all variants
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

90° rising vertical bend, for all cable tray types of 60 mm side height.

The vertical bend is pushed over the end of the cable tray and screwed tight.

Fastening materials should be ordered separately.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm
Maß W100 mm

Technical data

Maintain electrical functionsyes
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionVertical rising
TypeBend, rigid
Dimension60x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate2,4898 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
RBV 610 S FS
Item no.
7007005
Width
100
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBV 615 S FS
Item no.
7007009
Width
150
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBV 620 S FS
Item no.
7007013
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBV 630 S FS
Item no.
7007017
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBV 640 S FS
Item no.
7007021
Width
400
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBV 660 S FS
Item no.
7007029
Width
600
Surface
Strip galvanized
Material
Steel
Colour
zinc
