90° vertical bend, falling 85 FS
Type RBV 810 F FS | Item no. 7007270 | EAN 4012195711636
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description

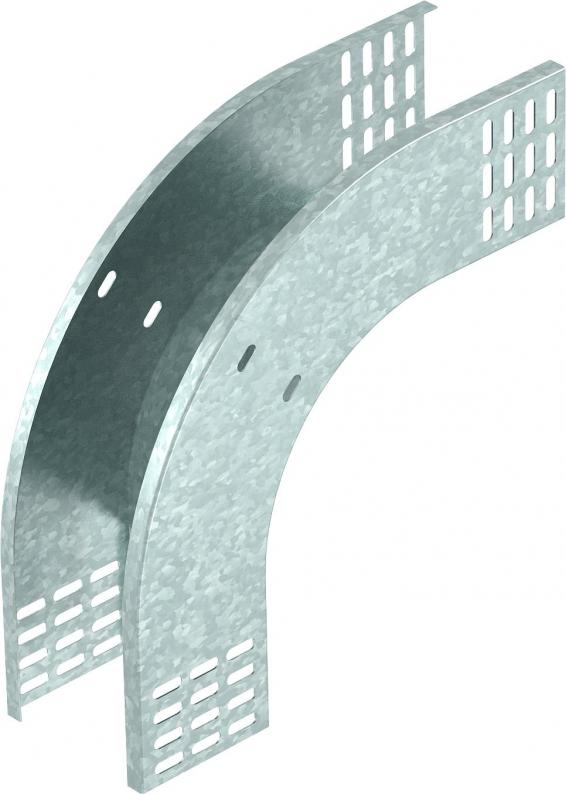

90° vertical bend, falling, for all cable tray types of 85 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
Technical data

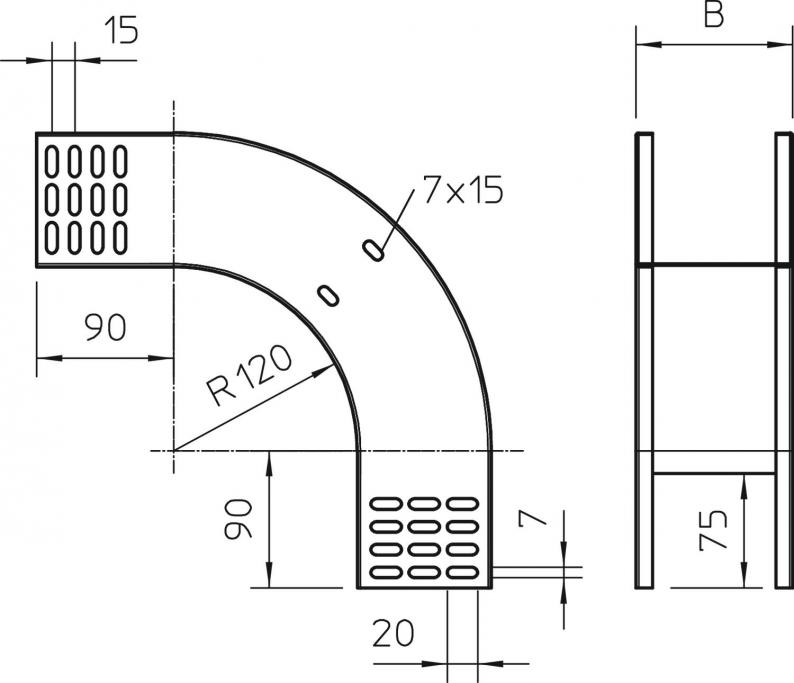

Dimensions
| Width | 100 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, falling |
| Dimension | 85x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,186 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
Variants
Type
Width
Surface
Material
Colour
Item no.
RBV 810 F FS
100
Strip galvanized
Steel
zinc
7007270
RBV 820 F FS
200
Strip galvanized
Steel
zinc
7007274
RBV 830 F FS
300
Strip galvanized
Steel
zinc
7007278
Width
RBV 810 F FS
Item no.
7007270
Width
100
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBV 820 F FS
Item no.
7007274
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBV 830 F FS
Item no.
7007278
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
