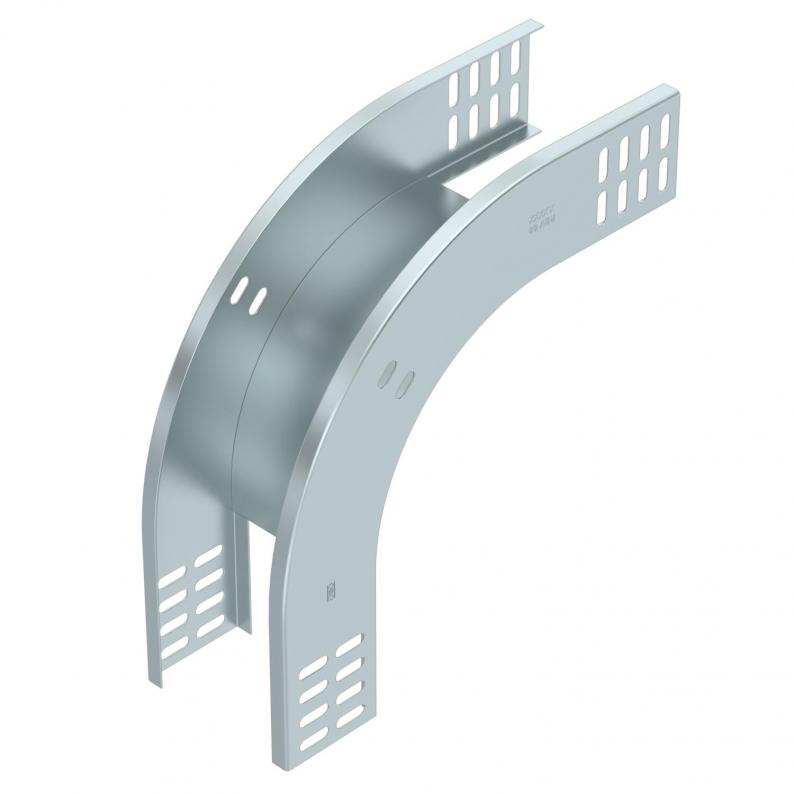

90° vertical bend, falling 60 FS
Type RBV 610 F FS | Item no. 7007055 | EAN 4012195047445
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description
90° vertical bend, falling, for all cable tray types of 60 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
| Maß W | 100 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, falling |
| Type | Bend, rigid |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,3343 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
RBV 610 F FS
100
Strip galvanized
Steel
zinc
7007055
RBV 615 F FS
150
Strip galvanized
Steel
zinc
7007059
RBV 620 F FS
200
Strip galvanized
Steel
zinc
7007063
RBV 630 F FS
300
Strip galvanized
Steel
zinc
7007067
RBV 640 F FS
400
Strip galvanized
Steel
zinc
7007071
RBV 650 F FS
500
Strip galvanized
Steel
zinc
7007075
RBV 660 F FS
600
Strip galvanized
Steel
zinc
7007079
