90° Magic bend 60 FS
Type RBM 90 650 FS
|Item no. 6041140
|EAN 4012195881865
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

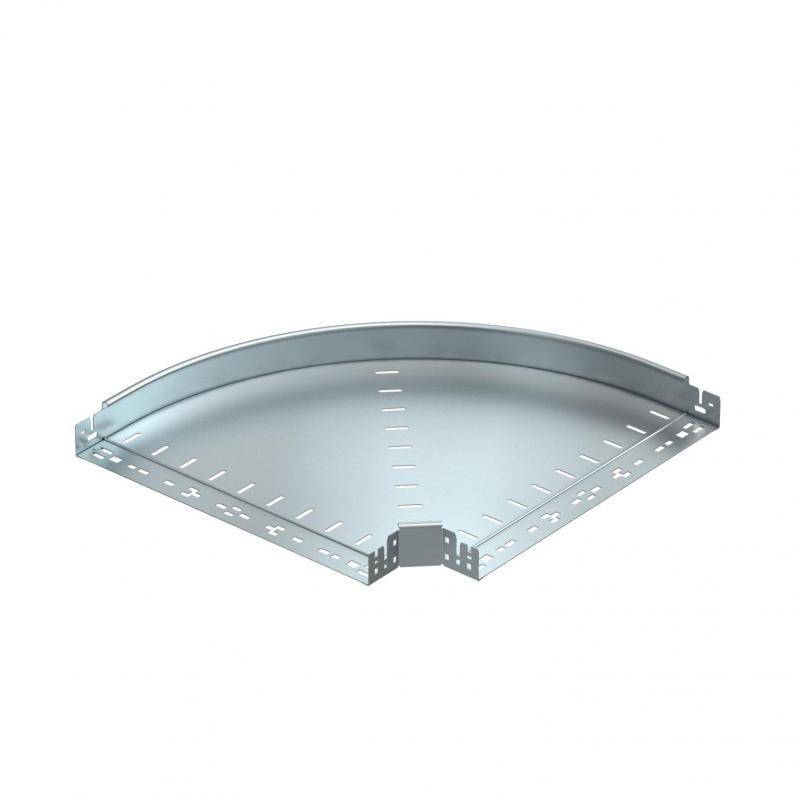

90° bend with quick connector system. For all cable tray types of 60 mm side height.
Technical data
Dimensions
| Width | 500 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 500 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 60x500 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Fire protection | Use of fire protection ceilings |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 13,52 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
RBM 90 640 FS
400
Strip galvanized
Steel
zinc
6041138
RBM 90 650 FS
500
Strip galvanized
Steel
zinc
6041140
RBM 90 660 FS
600
Strip galvanized
Steel
zinc
6041142
Width
RBM 90 640 FS
Item no.
6041138
Width
400
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBM 90 650 FS
Item no.
6041140
Width
500
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBM 90 660 FS
Item no.
6041142
Width
600
Surface
Strip galvanized
Material
Steel
Colour
zinc
