90° Magic bend 35 FS

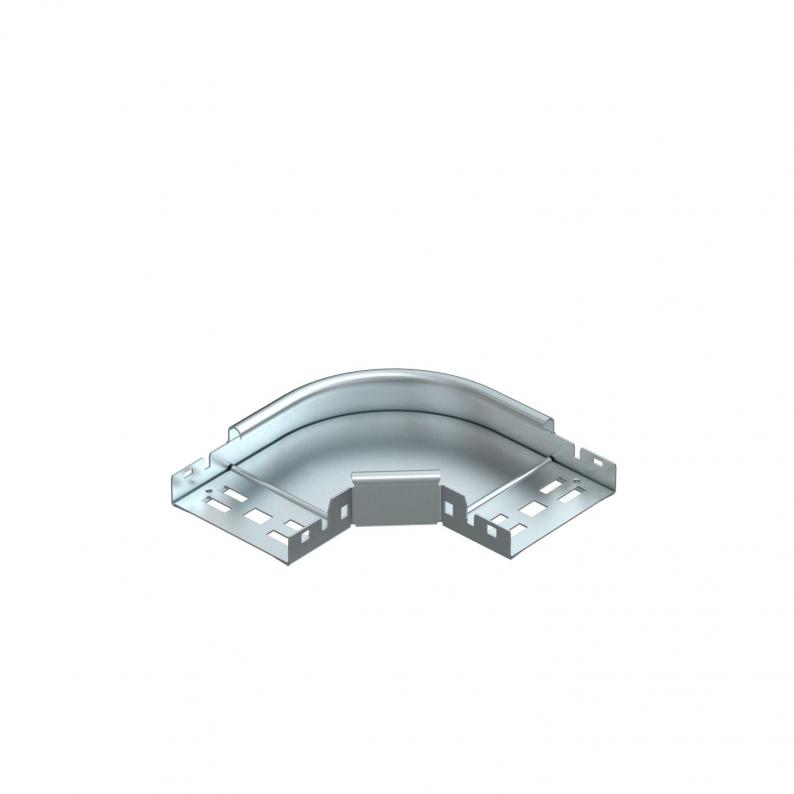

90° Magic bend 35 FS

Type RBM 90 310 FS | Item no. 6041010 | EAN 4012195881322

Show all variants
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

90° bend with quick connector system. For all cable tray types of 35 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height35 mm
Dimension B100 mm
Dimension R50 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionHorizontal
Dimension35x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate2,0244 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
RBM 90 310 FS
Item no.
6041010
Width
100
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBM 90 320 FS
Item no.
6041012
Width
200
Surface
Strip galvanized
Material
Steel
RBM 90 330 FS
Item no.
6041014
Width
300
Surface
Strip galvanized
Material
Steel
