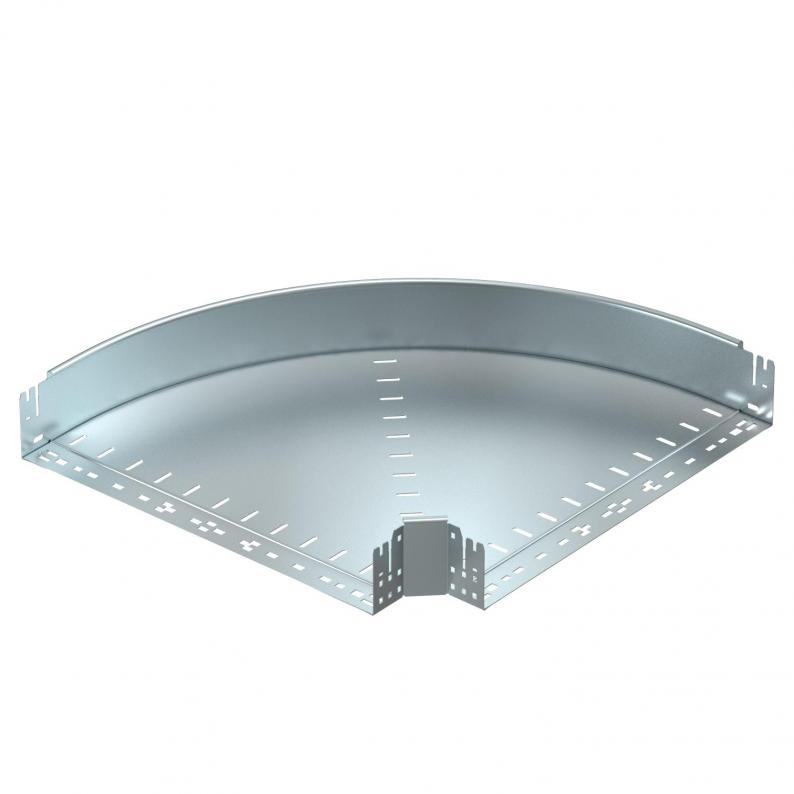

90° Magic bend 110 FS
Type RBM 90 160 FS | Item no. 6041850 | EAN 4012195880592
Item no. / Type
6041850 / RBM 90 160 FS
Surface
Strip galvanized
Material
Steel
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description
90° bend with quick connector system. For all cable tray types of 110 mm side height.
Technical data

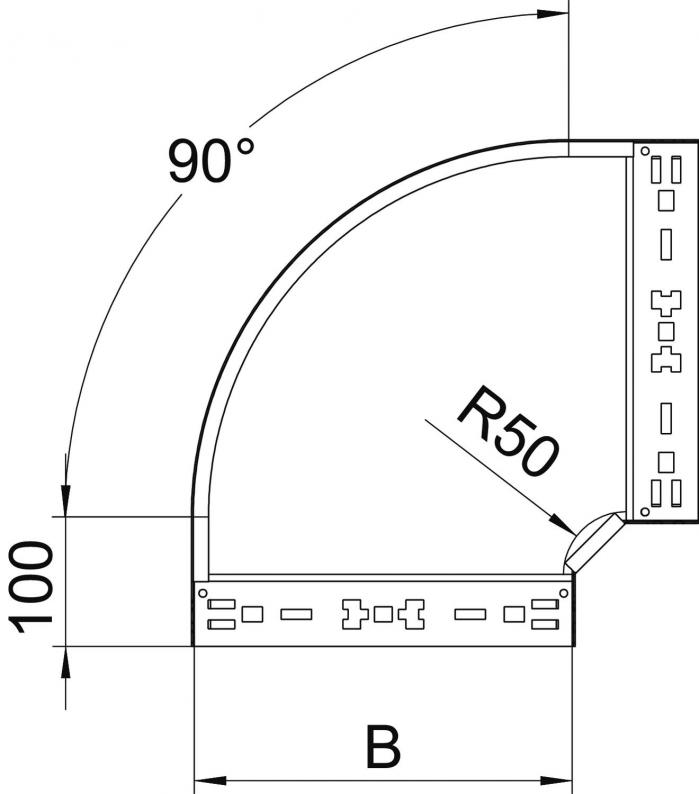

Dimensions
| Width | 600 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 600 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 110x600 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Click fastening |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
