90° bend 85 FS
Type RB 90 820 FS | Item no. 7001789 | EAN 4012196819317
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description

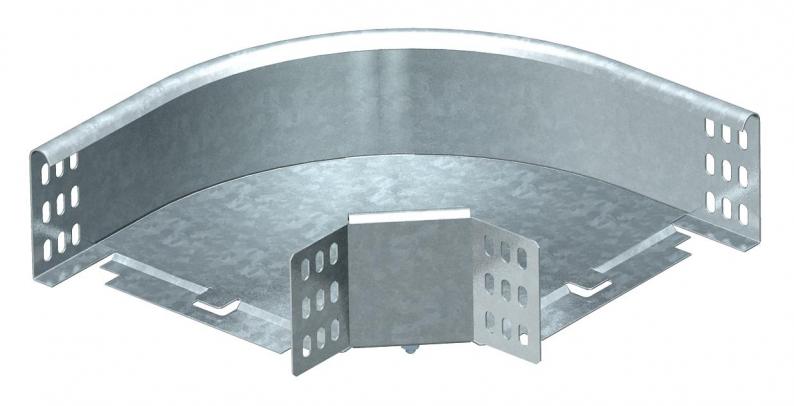

90° bend, horizontal, for all cable tray types of 85 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
Technical data

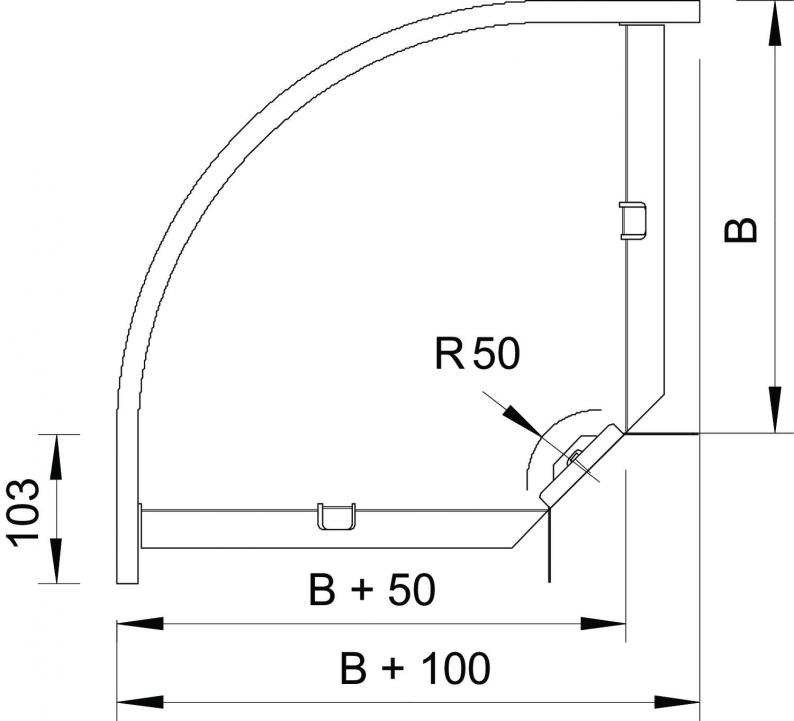

Dimensions
| Width | 200 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 200 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 85x200 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 90 820 FS
200
Strip galvanized
Steel
zinc
7001789
RB 90 830 FS
300
Strip galvanized
Steel
zinc
7001800
