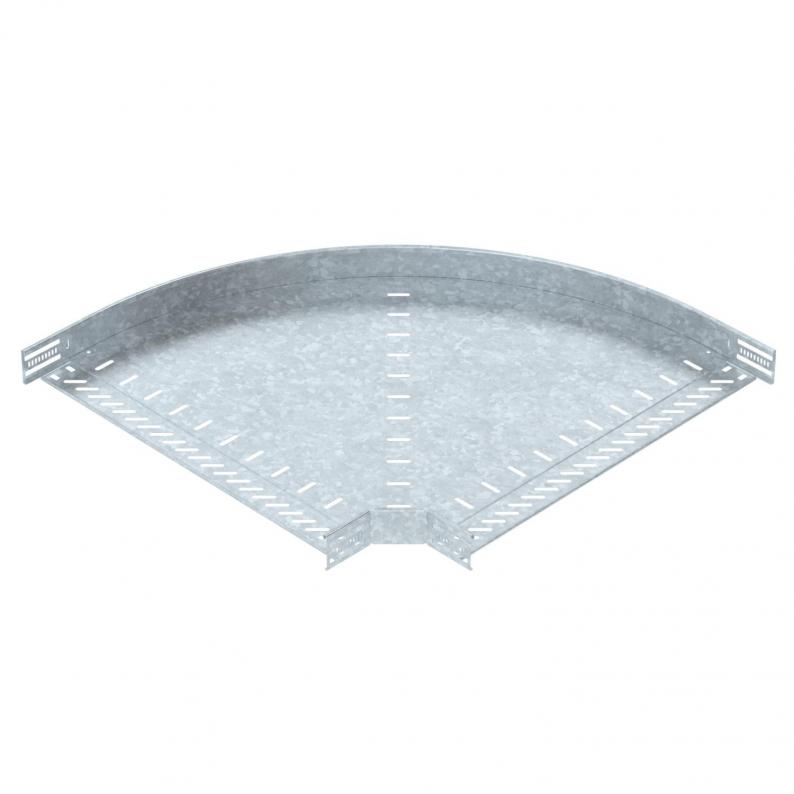

90° bend 60 FT
Type RB 90 660 FT | Item no. 6036602 | EAN 4012197344610
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description
90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
Technical data
Dimensions
| Width | 600 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 600 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Material thickness, floor plate | 1 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| With cover | no |
| Type | Bend, rigid |
| Rail thickness | 1,25 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 120 °C |
| Dimension | 60x600 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 16 St. |
| CO2 Footprint (GWP) Cradle-to-Gate | 11,9166 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 90 610 FT
100
Hot-dip galvanised
Steel
zinc
6036590
RB 90 615 FT
150
Hot-dip galvanised
Steel
zinc
6036592
RB 90 620 FT
200
Hot-dip galvanised
Steel
zinc
6036594
RB 90 630 FT
300
Hot-dip galvanised
Steel
zinc
6036596
RB 90 640 FT
400
Hot-dip galvanised
Steel
zinc
6036598
RB 90 650 FT
500
Hot-dip galvanised
Steel
zinc
6036600
RB 90 660 FT
600
Hot-dip galvanised
Steel
zinc
6036602
