90° bend 60 FS

Type RB 90 620 FS | Item no. 6043224 | EAN 4012196050536

Item no. / Type

6043224 / RB 90 620 FS

Surface

Strip galvanized

Material

Steel

Colour

zinc

Smallest selling unit: 1 piece

Description

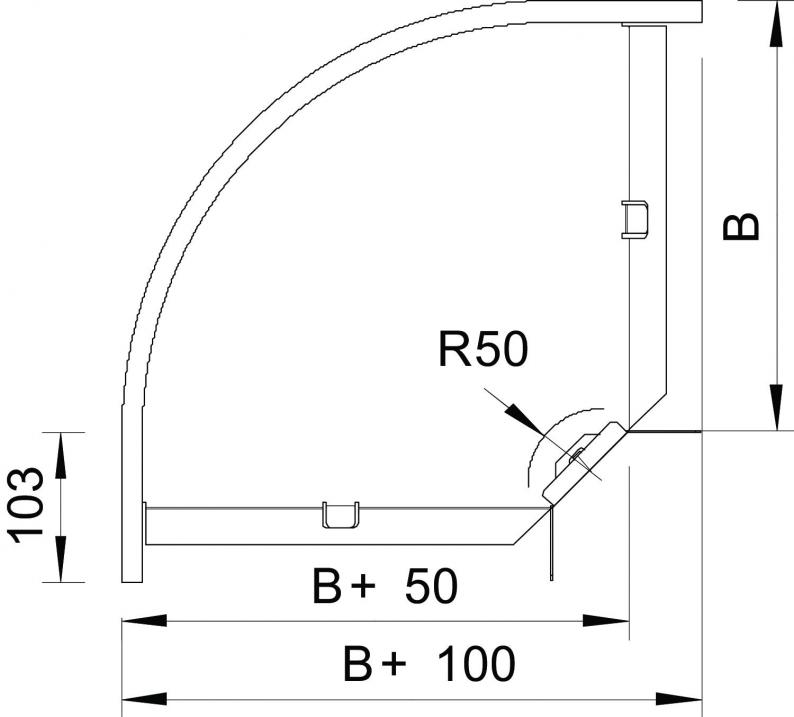

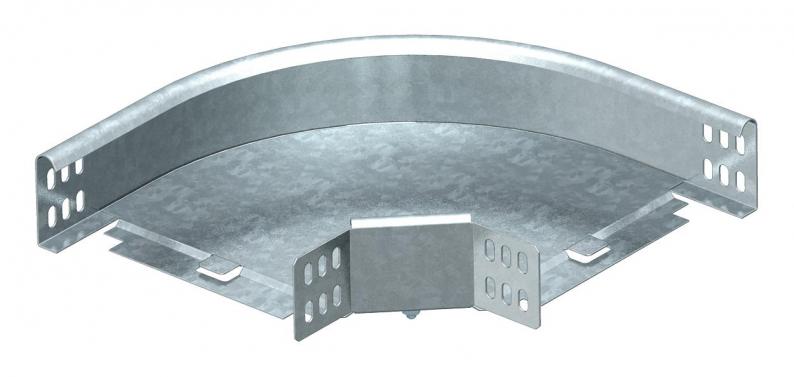

90° bend, horizontal, for all cable tray types of 60 mm side height.

The fitting is shipped in an unmounted state.

Including appropriate fastening material.

Maintain electrical functions	yes
Side perforation	no
Connector version	Supplied connectors
Wide-span version	no
Rustproof steel, pickled	no
Mounting perforation in base	no
NATO hole pattern	no
Bend (angle)	90°
Change of direction	Horizontal
Dimension	60x200
Surface	Strip galvanized
Material	Steel
Colour	zinc
Type of connector, cable support system	Screwed
CO2 Footprint (GWP) Cradle-to-Gate	3,5311 kg CO2e / 1 Piece
