90° adjustable bend, vertical 85 FS
Type RGBV 820 FS | Item no. 7006489 | EAN 4012196218295
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description

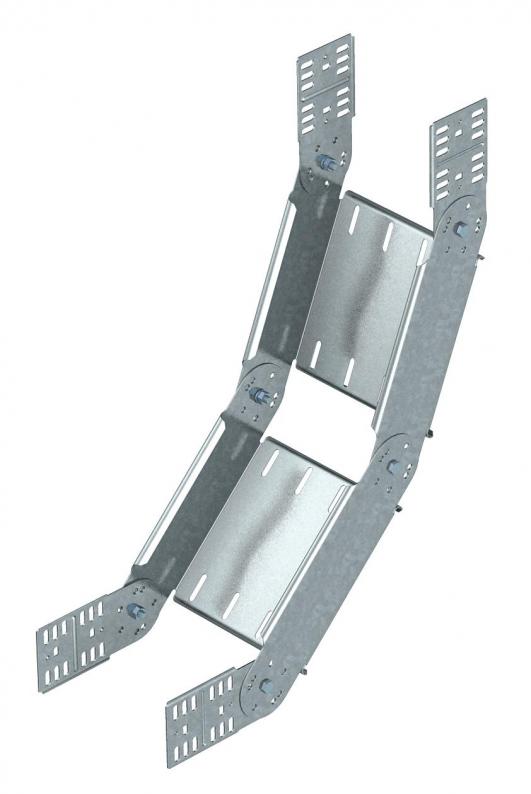

90° adjustable vertical bend, for all cable tray types with a side height of 85 mm.
The bend is shipped in an unmounted state. No additional fastening materials are required.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 85 mm |
| Dimension R | 400 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, rising/falling |
| Type | Adjustable bend_complete |
| Dimension | 85x200 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (1)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
RGBV 820 FS
200
Strip galvanized
Steel
zinc
7006489
RGBV 830 FS
300
Strip galvanized
Steel
zinc
7006500
Width
RGBV 820 FS
Item no.
7006489
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
RGBV 830 FS
Item no.
7006500
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
